194014-1

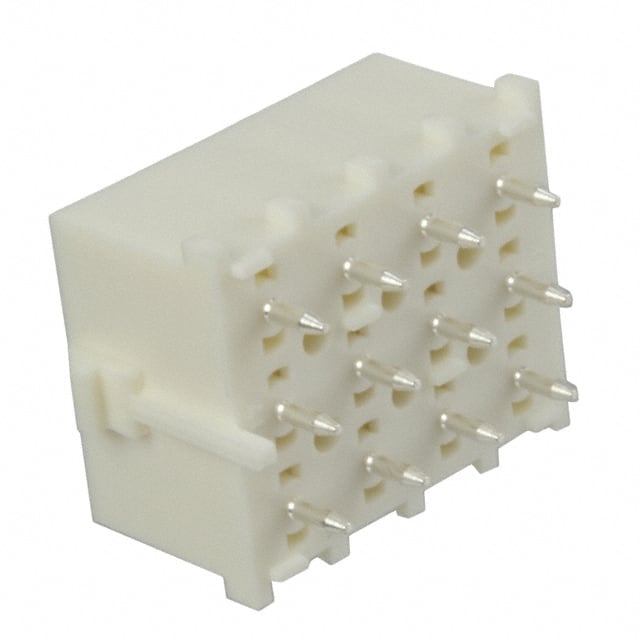

The TE Connectivity 194014-1 is a rectangular connector header designed for board-to-cable/wire applications. It features 12 male pin contacts arranged in 3 rows with a 6.35mm pitch and 6.35mm row spacing. The header is through-hole mounted with solder termination, providing a reliable connection to the PCB. The connector is fully shrouded with a 4-wall design, and includes a locking ramp for secure mating with corresponding receptacles. The contacts are made of copper alloy with a silver finish (5.08µm thickness), ensuring good conductivity and corrosion resistance. The insulator is made of polyamide (nylon) with a flammability rating of UL94 V-0. The operating temperature range is -55°C to 105°C. A board guide feature aids in alignment during assembly. All 12 positions are loaded.

This header is suitable for various industrial and commercial applications requiring robust, high-current connections. The 6.35mm pitch allows for higher current capacity compared to finer pitch connectors. The shrouded design provides protection for the contacts and prevents misalignment. The locking ramp ensures a secure connection in vibration-prone environments.
