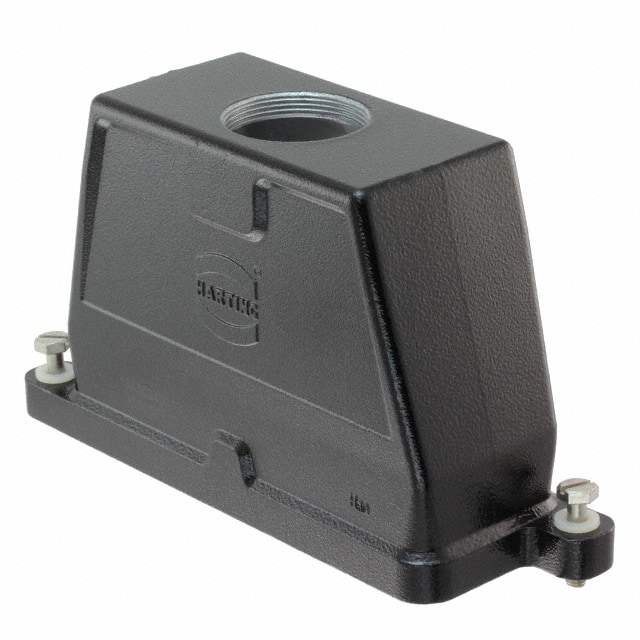

19400240413 Harting 19400240413 is a Han HPR series heavy duty connector hood with top entry, size 24B, single M40 cable entry, and screw locking.
Mfr Part #:

19400240413

Available from 1 distributors
Mfr Name: Harting
Harting
Harting 19400240413 is a Han HPR series heavy duty connector hood with top entry, size 24B, single M40 cable entry, and screw locking.
✓ Total Stock: 6 pcs

19400240413 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

19400240413 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Country of Origin
Failure Rate
Height
Housing Color
Housing Finish
Housing Material
Ingress Protection
Lead Style
Length
Lock Location
Operating Temperature
SVHC Present
Style
Thread Size
Weight
Width
View Similar Products (0)

19400240413 Description

Short technical summary and product information.

The Harting 19400240413 is a heavy duty connector hood from the Han HPR series, designed for harsh outdoor environments. It features a top entry configuration with a single M40 cable entry thread and screw locking mechanism.



The hood is constructed from corrosion-resistant aluminum die-cast with a black powder-coated finish (RAL 9005). It provides high ingress protection ratings of IP65, IP68, and IP69K, making it suitable for applications requiring dust tightness and water resistance.



This size 24B hood has dimensions of 192.00mm x 58.00mm x 110.00mm and weighs 580 g. It is rated for operating temperatures from -40°C to +125°C and complies with UL 1977, CSA C22.2 No. 182.3, CE, and DNV GL approvals.

19400240413 Quick Information

Product Type: Heavy Duty Connector Hood
Series: Han HPR
Canonical Name: Han 24 HPR Hood Top Entry M40 Screw Lock
Subcategory: Heavy Duty Connector Housings

19400240413 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL 1 - Unlimited
REACH Status: Compliant

19400240413 Features

  • Top entry heavy duty connector hood.
  • Single M40 cable entry with screw locking.
  • Corrosion-resistant aluminum die-cast housing.
  • IP65, IP68, and IP69K ingress protection.
  • Operating temperature range -40°C to +125°C.

19400240413 Applications

  • Harsh outdoor industrial connector applications.
  • Railway rolling stock and infrastructure equipment.
  • Heavy machinery requiring high protection levels.
  • Marine and offshore control systems.
  • Automation and robotics in demanding environments.

19400240413 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the ingress protection rating of the Harting 19400240413?

The hood is rated IP65, IP68, and IP69K.

What is the operating temperature range?

-40°C to +125°C.

What cable entry size does this hood accept?

It has a single M40 cable entry.

What materials are used in the housing and locking?

Housing is aluminum die-cast with powder-coated finish (RAL 9005 black). Locking is stainless steel.

Is the Harting 19400240413 RoHS compliant?

Yes, it is RoHS and ELV compliant.

Does this hood have approvals or certifications?

It has UL 1977, CSA C22.2 No. 182.3, CE, and DNV GL approvals. It also meets EN 45545-2 fire protection standards for railways.

What is the weight and dimensions of the hood?

Weight is 580 g. Dimensions: 192.00mm length, 58.00mm width, 110.00mm height.
