| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CE | |
| Connector Type | |
| Country of Origin | |
| DNV GL | |
| ETIM | |
| Fire Protection | |
| GTIN | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Type | |
| Material (Locking) | |
| Net Weight | |
| Operating Temperature | |
| Packaging Size | |
| Prop 65 | |
| Style | |
| Thread Size | |
| Tightening Torque | |
| UL | |
| Width | |
| eCl@ss |

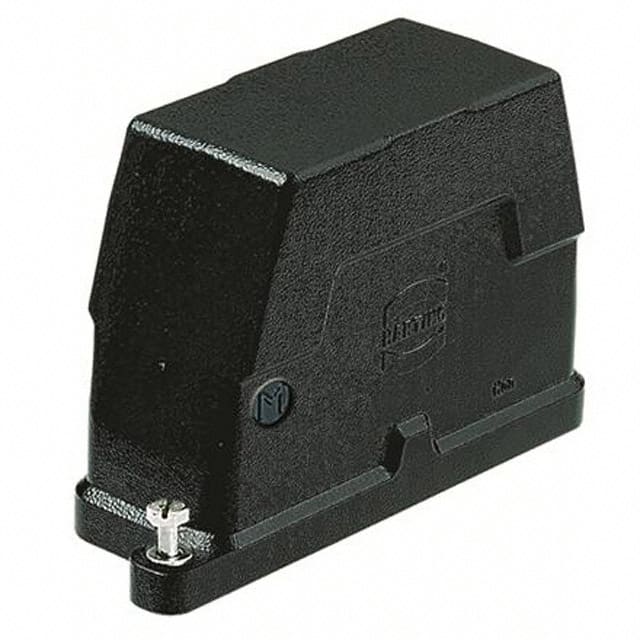

This Harting Han 16 HPR hood is a side entry connector housing designed for harsh outdoor environments. It features a size 16B form factor with a single M32 cable entry and screw locking mechanism. The housing is constructed from aluminum die-cast with an epoxy powder paint finish in RAL 9005 jet black.
Rated for IP65, IP68, and IP69K ingress protection, this hood provides dust-tight and waterproof sealing suitable for demanding industrial and outdoor applications. It operates over a wide temperature range from -40°C to 125°C.
The screw locking system uses stainless steel components and has a specified tightening torque of 4 Nm. The hood is UL 1977 and CSA C22.2 No. 182.3 certified, and meets fire protection requirements per EN 45545-2 for railway vehicles.
IP65, IP68, and IP69K (dust tight, water resistant, waterproof).
-40°C to 125°C.
Screw locking with a tightening torque of 4 Nm.
Aluminum, die cast with epoxy powder paint finish, color RAL 9005 jet black.
Single M32 cable entry.
Yes, RoHS3 compliant per datasheet.
UL 1977 (ECBT2.E235076), CSA C22.2 No. 182.3, CE, DNV GL, and EN 45545-2 fire protection.
