| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approvals | |
| Cable Entry Thread Size | |
| California Proposition 65 | |
| China RoHS | |
| Connector Type | |
| Country of Origin | |
| ELV | |
| ETIM | |
| Fire Protection Railway | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Material | |
| Locking Type | |
| Net Weight | |
| Number of Cable Entries | |
| Operating Temperature | |
| Packaging Size | |
| Style | |
| Thread Size | |
| Tightening Torque | |
| UL Type Rating | |
| UL/CSA | |
| Width | |
| eCl@ss |

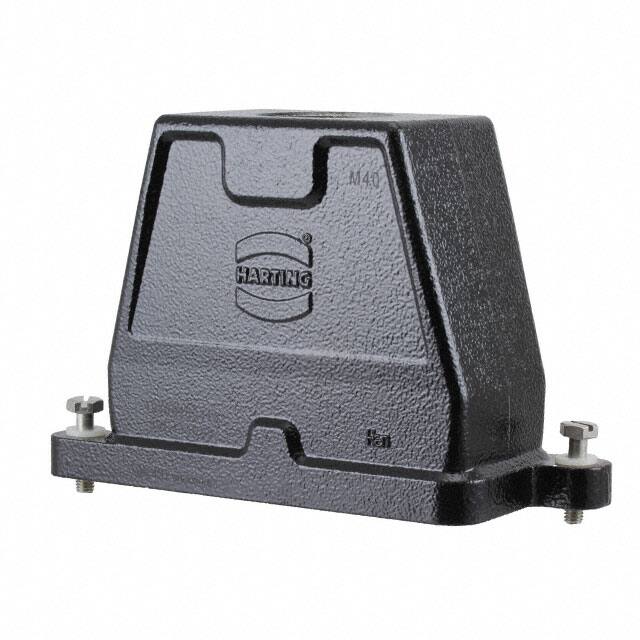

This heavy duty connector hood is part of the Han HPR series from Harting, designed for harsh outdoor environments. It features a size 16B top entry configuration with a single M40 cable entry and screw locking mechanism.
The housing is made of corrosion-resistant aluminium die-cast with a powder-coated finish in RAL 9005 jet black. Screw locks are stainless steel, tightened to 4 Nm. The operating temperature range is -40°C to +125°C.
Ingress protection ratings include IP65, IP68, and IP69/IPX9K. UL type ratings 4, 4X, and 12 apply (per UL 50/50E). The hood meets EN 45545-2 fire protection requirements for railway applications. Weight is 520 g.
IP65, IP68, and IP69/IPX9K according to IEC 60529 and ISO 20653.
-40°C to +125°C.
Corrosion-resistant aluminium die-cast with powder-coated finish in RAL 9005 jet black.
Size 16B.
Yes, RoHS compliant and also ELV compliant, China RoHS e, and REACH Annex XVII/XIV/SVHC not contained.
