| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Entry Thread Size | |
| California Proposition 65 | |
| Connector Type | |
| Country of Origin | |
| Fire Protection | |
| Fire Protection Railway Vehicles | |
| Halogen Free | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Type | |
| Material (Locking) | |
| Net Weight | |
| Number of Cable Entries | |
| Operating Temperature | |
| Packaging Size | |
| SVHC Present | |
| Style | |
| Thread Size | |
| Tightening Torque (Screw Locking) | |
| Type Rating (UL 50/50E) | |
| Width |

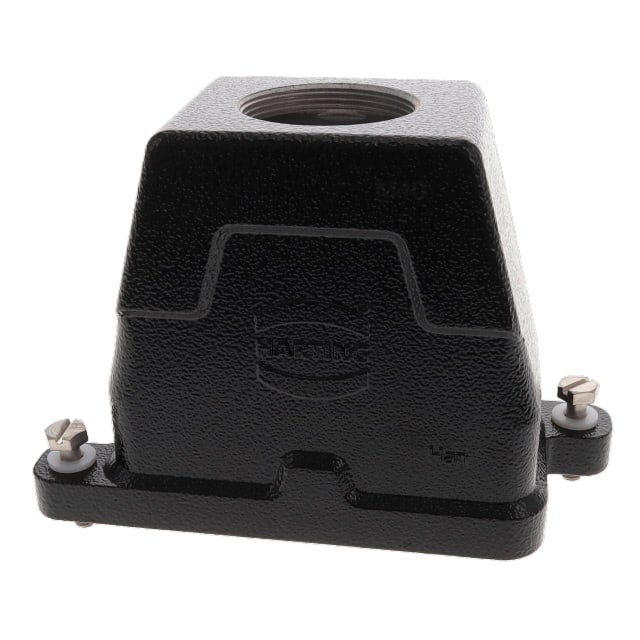

The 19400100413 is a heavy-duty connector hood from the Han HPR series by Harting.
This top entry hood is designed for size 10B connectors and accommodates a single M40 cable entry. The die-cast aluminum housing with black powder coating (RAL 9005) provides durability and corrosion resistance. Screw locking with stainless steel locking elements ensures a secure connection.
The hood is rated for IP65, IP68, and IP69K protection, making it suitable for harsh outdoor environments. It also carries UL Type 4, 4X, and 12 ratings, and is compliant with EN 45545-2 fire protection standards for railway vehicles.
Operating temperature range is -40°C to +125°C. Tightening torque for the screw locking is 4 Nm.
It is a top entry hood for size 10B heavy-duty connectors, part of the Han HPR series.
It has a single cable entry with M40 thread size.
It is rated IP65, IP68, and IP69K according to IEC 60529 and ISO 20653.
The limiting temperature is -40°C to +125°C according to IEC 61984.
The housing is die-cast aluminum with a powder-coated finish in black (RAL 9005). The locking mechanism is stainless steel.
