| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approvals | |
| Cable Entry Size | |
| California Proposition 65 | |
| China RoHS | |
| Connector Type | |
| Country of Origin | |
| Customs Tariff | |
| ELV | |
| Features | |
| Fire Protection | |
| Height | |
| Housing Color | |
| Housing Material | |
| Housing Type | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Material | |
| Locking Type | |
| Number of Cable Entries | |
| Operating Temperature | |
| Package Quantity | |
| Panel Thickness | |
| SVHC Present | |
| Seal Material | |
| Style | |
| Surface Finish | |
| Thread Size | |
| Tightening Torque (Fixing Screws) | |
| Tightening Torque (Screw Locking) | |
| UL Type Rating | |
| UL/CSA Certification | |
| Weight | |
| Width |

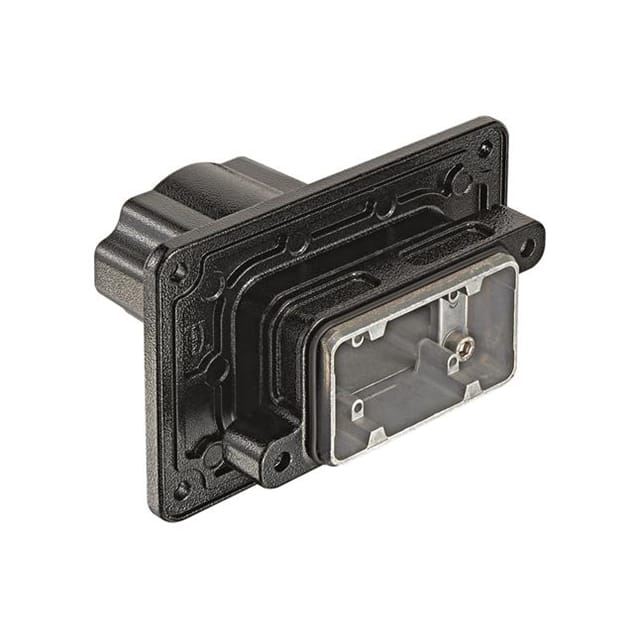

The Harting 19400061118 is a Han 6HPR-PFT panel feed through housing designed for mounting from outside the panel. It is part of the Han HPR series, engineered for harsh outdoor environments requiring high ingress protection.
This housing is size 6B with a top entry configuration and a single M40 cable entry. It is constructed from corrosion-resistant aluminum die-cast with a powder-coated black finish (RAL 9005). The seal is made of NBR, and the locking mechanism uses stainless steel screws with a tightening torque of 4 Nm.
The housing provides ingress protection ratings of IP65, IP68, and IP69K, making it suitable for dust-tight and waterproof applications including high-pressure washdown. It also carries UL Type ratings 4, 4X, and 12, and complies with fire protection standards EN 45545-2.
IP65, IP68, and IP69K (IPX9K per ISO 20653).
-40°C to +125°C.
Aluminum die-cast, powder-coated, color RAL 9005 (jet black).
Single M40 cable entry.
Screw locking with stainless steel hardware, tightening torque 4 Nm.
UL Type 4, 4X, and 12.
At least 2 mm.
