| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| California Proposition 65 | |
| Color (Hood/Housing) | |
| Connector Type | |
| Corrosion Resistant | |
| Country of Origin | |
| Degree of Protection | |
| ETIM | |
| Features | |
| Fire Protection on Railway Vehicles | |
| GTIN | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Ingress Protection | |
| Limiting Temperature | |
| Lock Location | |
| Locking Type | |
| Material (Locking) | |
| Material (Seal) | |
| Mounting Type | |
| Net Weight | |
| Operating Temperature | |
| Packaging Size | |
| Style | |
| Surface (Hood/Housing) | |
| Thickness of the panel | |
| Thread Size | |
| Tightening Torque (Fixing Screws) | |
| Tightening Torque (Screw Locking) | |
| UL/CSA |

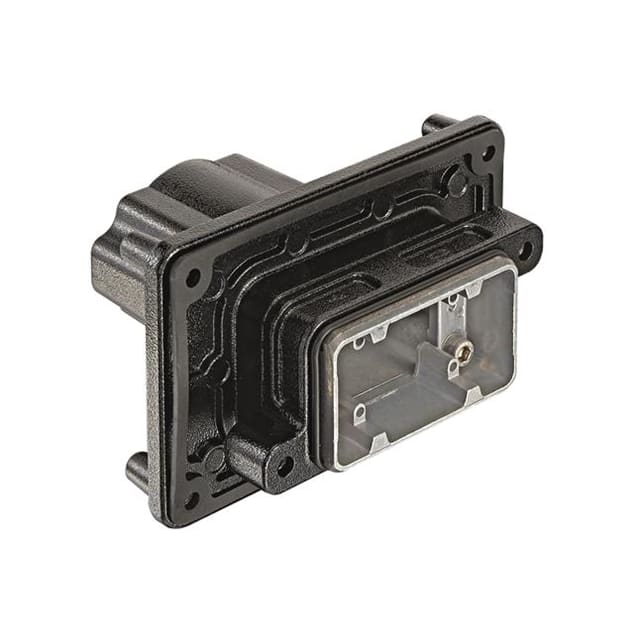

The Harting 19400061113 is a Han 6HPR-PFT panel feed through housing (M40) designed for harsh outdoor environments. It features a 6B size, screw locking mechanism, and is made from corrosion-resistant aluminum die-cast with a powder-coated finish in RAL 9005 black. The housing offers IP65, IP68, and IP69/IPX9K ingress protection, and operates from -40°C to 125°C. It is UL and CSA certified, and meets EN 45545-2 for railway fire protection. The panel feed through design allows mounting from inside the panel with a minimum thickness of 2 mm. Tightening torques are 4 Nm for screw locking and 6 Nm for fixing screws.
Panel feed through, designed for mounting from inside the panel with minimum thickness 2 mm.
IP65, IP68, and IP69/IPX9K.
-40°C to 125°C.
Yes, RoHS compliant and REACH Annex XVII substances not contained.
Aluminum die-cast with powder-coated surface.
