| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approvals | |
| California Proposition 65 | |
| Connector Type | |
| Corrosion Resistant | |
| ELV | |
| Fire Protection | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Material | |
| Locking Type | |
| Net Weight | |
| Number of Cable Entries | |
| Operating Temperature | |
| Package Quantity | |
| SVHC Present | |
| Size (B) | |
| Style | |
| Thread Size | |
| Tightening Torque | |
| Width |

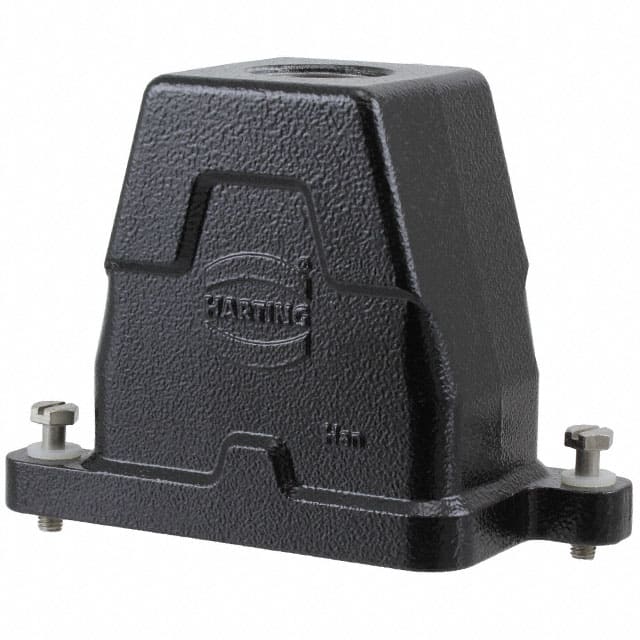

The Harting 19400060412 is a heavy duty connector hood from the Han HPR series, designed for harsh outdoor environments. It is a top entry hood with size 6B, accommodating a single M32 cable entry. The hood uses screw locking with stainless steel hardware for secure mating.
The housing is made of corrosion-resistant aluminum die-cast with a black powder-coated finish (RAL 9005). It provides ingress protection ratings of IP65, IP68, and IP69K, making it dust tight and waterproof. The operating temperature range is -40°C to 125°C.
This hood carries multiple approvals including UL 1977, CSA C22.2 No. 182.3, CE, and DNV GL. It also meets fire protection requirements per EN 45545-2 (R1 and R7 for HL 1-3). Dimensions are 132.00mm length, 58.00mm width, and 100.00mm height, with a net weight of 380 g. The package contains one unit.
IP65, IP68, and IP69K (dust tight, water resistant, waterproof).
-40°C to 125°C.
Aluminum die-cast with powder coating (RAL 9005 black).
Screw locking with stainless steel hardware.
UL 1977, CSA C22.2 No. 182.3, CE, DNV GL, and EN 45545-2 fire protection.
Size 6B with M32 cable entry.
