1939934 Phoenix Contact 1939934 is a 4-position plug with female sockets, 3.50mm pitch, screwless push-in spring termination, and free hanging mounting. Rated 300V and 8A.
Mfr Part #:

1939934

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1939934 is a 4-position plug with female sockets, 3.50mm pitch, screwless push-in spring termination, and free hanging mounting. Rated 300V and 8A.
✓ Total Stock: 43 pcs

1939934 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
43 pcs
On Request
43 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1939934 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Color
Contact Mating Finish
Current
Halogen Free
Industrial Grade
Lead Spacing
Lead Style
Medical Grade
Military Grade
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
Rated Current
Rated Voltage
SVHC Present
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1939934 Description

Short technical summary and product information.

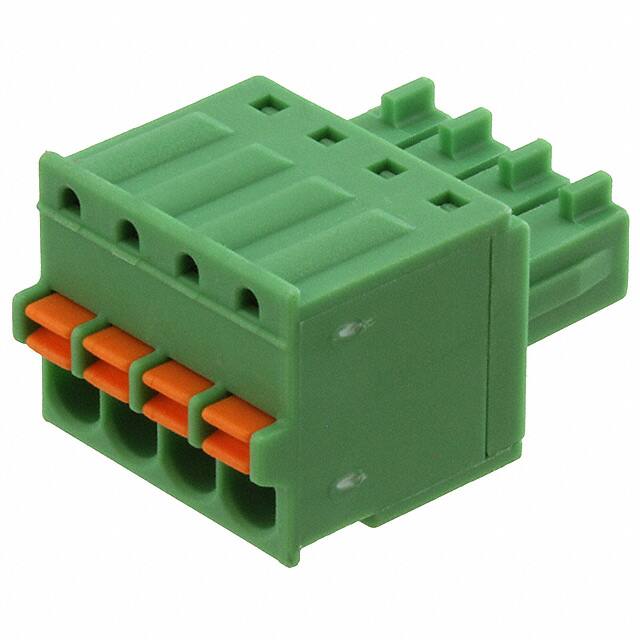

The Phoenix Contact 1939934 is a 4-position plug with female sockets from the MINI COMBICON FK-MCP series. It features a 3.50mm pitch and uses a screwless push-in spring cage connection for fast and reliable conductor termination. The plug is designed for free hanging (in-line) mounting and has a 180° wire entry direction.



Electrical ratings include a rated voltage of 300V, rated current of 8A, and a rated surge voltage of 2.5kV. It accepts solid and stranded conductors from 0.14 to 1.5 mm² (28-16 AWG) with a stripping length of 9mm. The insulating material is polyamide (PA) with a flammability class of V0 per UL 94.



The plug is color green and has a tin contact mating finish. It is designed for use with MC headers of 3.5mm pitch and includes an integrated test connection for a 1.2mm test pin.

1939934 Quick Information

Product Type: Terminal Block Plug
Series: FK-MCP 1,5/...-ST-3,5
Canonical Name: Phoenix Contact FK-MCP 1,5/4-ST-3,5 Plug, Female Sockets, 4 Position, 3.50mm Pitch, Push-In Spring, Free Hanging
Subcategory: Headers, Plugs and Sockets

1939934 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

1939934 Features

  • 4-position plug with 3.50mm pitch.
  • Screwless push-in spring termination.
  • Rated 300V and 8A operation.
  • Accepts 28-16 AWG conductors.
  • Free hanging (in-line) mounting style.

1939934 Applications

  • Used in industrial control panel wiring.
  • Ideal for sensor and actuator connections.
  • Suitable for building automation systems.
  • Common in power distribution applications.

1939934 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of this terminal block plug?

The pitch is 3.50mm (0.138 inches).

How many positions does this plug have?

This plug has 4 positions.

What is the rated voltage and current?

The rated voltage is 300V and the rated current is 8A.

What type of termination does this plug use?

It uses a screwless push-in spring termination.

What is the mounting type?

The mounting type is free hanging (in-line).

What wire gauge does this plug accept?

It accepts 28 to 16 AWG wire (0.14 to 1.5 mm²).

What is the flammability rating of the insulating material?

The insulating material has a flammability class of V0 in accordance with UL 94.
