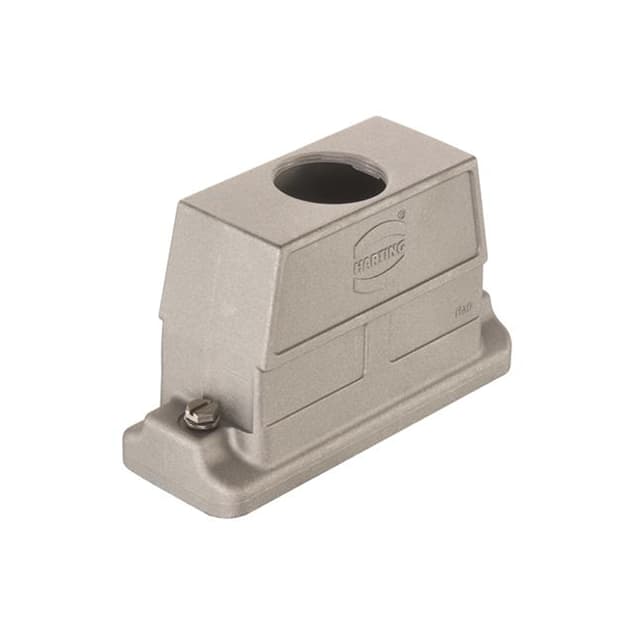

The Harting Han 24HP Direct/EMC-HTE-M32 (part number 19398240447) is a heavy-duty connector hood designed for industrial applications requiring reliable and robust connections. This top entry hood is size 24B and accommodates a single M32 cable entry, making it suitable for cable diameters compatible with M32 glands. The housing is made of aluminum die-cast with an electrically conductive EMC coating, providing electromagnetic compatibility performance. The screw locking mechanism ensures secure mating, with a recommended tightening torque of 4 Nm. The seal is made of NBR, contributing to the high ingress protection ratings of IP66, IP68, and IP69K, which cover dust ingress, water immersion, and high-pressure water jets. The operating temperature range is -40 to 125 degrees Celsius, suitable for harsh environments. The hood is unpainted and has stainless steel locking components. It is compliant with RoHS, ELV, China RoHS, REACH, and fire protection standards for railway vehicles (EN 45545-2). This hood is part of the Han HP Direct EMC series and is designed for use with corresponding Han connectors and inserts.
The hood is rated IP66, IP68, and IP69K, meaning it is dust-tight, protected against water immersion, and resistant to high-pressure, high-temperature water jets.
The operating temperature range is -40 to 125 degrees Celsius.
The housing is aluminum die-cast with an electrically conductive EMC coating.
It uses screw locking with screws located on the hood. The recommended tightening torque is 4 Nm.
The cable entry is a single M32 thread.
This hood is size 24 B. Its dimensions are 153 mm length, 57 mm width, and 94 mm height.
