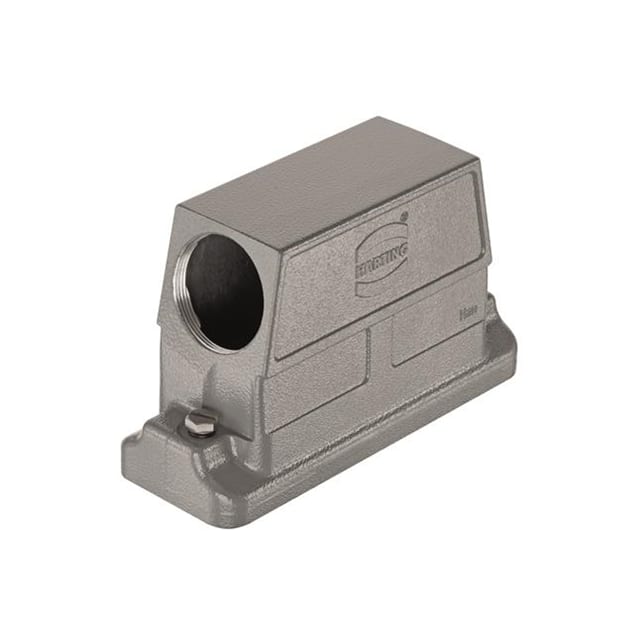

19396240545 Harting Han 24HP Direct/B-HSE-M20 hood, side entry, size 24B, M20 cable entry, screw locking, aluminum die-cast housing, IP66/IP68/IP69K rated.
Mfr Part #:

19396240545

Available from 1 distributors
Mfr Name: Harting
Harting
Harting Han 24HP Direct/B-HSE-M20 hood, side entry, size 24B, M20 cable entry, screw locking, aluminum die-cast housing, IP66/IP68/IP69K rated.
✓ Total Stock: 5 pcs

19396240545 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

19396240545 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Height
Housing Color
Housing Finish
Housing Material
Ingress Protection
Length
Lock Location
Operating Temperature
Prop 65
SVHC Present
Style
Thread Size
Width
View Similar Products (0)

19396240545 Description

Short technical summary and product information.

The Harting 19396240545 is a heavy-duty connector hood from the Han HP Direct B series. It features a side entry design with a single M20 cable entry and screw locking mechanism. The housing is made of aluminum die-cast with a powder-coated finish in RAL 7037 dust gray. The seal is NBR and the locking elements are stainless steel.



This hood is rated for ingress protection IP66, IP68, and IP69K, making it suitable for demanding environments requiring dust tightness and water resistance. It operates over a temperature range of -40°C to 125°C. The tightening torque for the screw locking is 4 Nm.



The part is RoHS, REACH, ELV, and China RoHS compliant. It also meets California Proposition 65 requirements. The product is supplied individually packaged.

19396240545 Quick Information

Product Type: Heavy Duty Connector Hood
Series: HP Direct B
Canonical Name: Han 24HP Direct/B-HSE-M20 Hood, Side Entry, Size 24 B, M20
Subcategory: Heavy Duty Connector Housings, Hoods, Bases

19396240545 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Compliant

19396240545 Features

  • Side entry hood with M20 cable entry.
  • Screw locking mechanism with 4 Nm torque.
  • IP66, IP68, and IP69K ingress protection.
  • Aluminum die-cast housing, powder coated.
  • Operating temperature range -40°C to 125°C.

19396240545 Applications

  • Used in heavy-duty industrial connector systems.
  • Suitable for harsh environments requiring high IP rating.
  • Ideal for machinery and control cabinet connections.
  • Applicable in railway and transportation equipment.

19396240545 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the ingress protection rating of this hood?

IP66, IP68, and IP69K (dust tight, water resistant, waterproof).

What is the operating temperature range?

-40°C to 125°C.

What material is the housing made of?

Aluminum, die cast with powder coated finish.

What type of locking mechanism does it use?

Screw locking with a tightening torque of 4 Nm.

What is the size of this hood?

Size 24 B.

What is the cable entry thread size?

M20.

Is this product RoHS compliant?

Yes, RoHS compliant.
