| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Entry Thread Size | |
| California Proposition 65 | |
| China RoHS | |
| Connector Type | |
| ELV | |
| Fire Protection | |
| Halogen Free | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Material | |
| Locking Type | |
| Net Weight | |
| Number of Cable Entries | |
| Operating Temperature | |
| Packaging Size | |
| SVHC Present | |
| Seal Material | |
| Style | |
| Thread Size | |
| Tightening Torque (Screw Locking) | |
| Width |

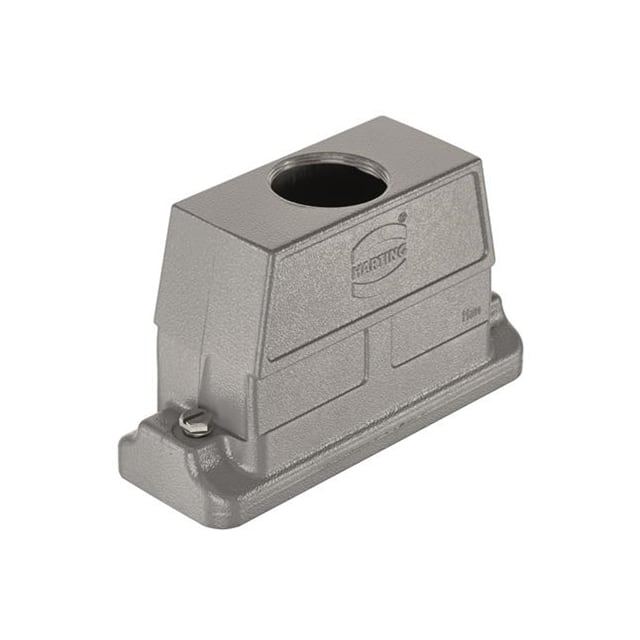

This Harting hood (part number 19396240445, also known as Han 24HP Direct/B-HTE-M20) is a heavy duty connector hood designed for industrial applications requiring robust environmental sealing. The top entry design accepts a single cable via an M20 threaded entry. Screw locking with a tightening torque of 4 Nm ensures secure mating with compatible bases.
The housing is made of aluminium die-cast with a powder-coated finish in RAL 7037 (dust grey). The seal material is NBR, and the locking mechanism is stainless steel. It offers ingress protection ratings of IP66, IP68, and IP69K, making it suitable for harsh environments including high-pressure washdown. The operating temperature range is -40 to +125°C.
This hood is part of the Han HP Direct B series and complies with RoHS, REACH, ELV, China RoHS, and California Proposition 65. It also meets fire protection requirements for railway vehicles per EN 45545-2 (R1 and R7, HL 1-3). The unit is packaged individually.
Size 24B.
IP66, IP68, and IP69K (dust tight, water resistant, waterproof).
-40 to +125 °C.
Screw locking with a tightening torque of 4 Nm.
Aluminium die-cast with powder-coated finish in RAL 7037 (dust grey).
M20.
4 Nm.
