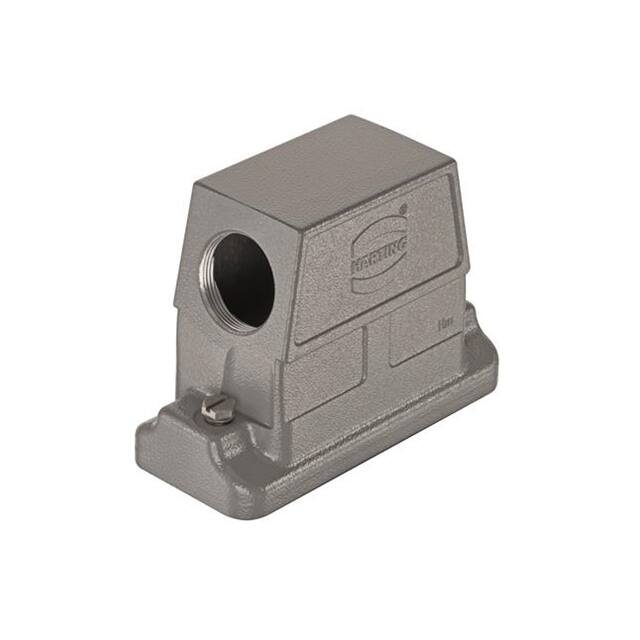

19396160548 Harting Han HP Direct B hood, side entry, size 16B with single M40 cable entry. IP66/IP68/IP69K protection, aluminium die-cast housing with powder coating.
Mfr Part #:

19396160548

Available from 1 distributors
Mfr Name: Harting
Harting
Harting Han HP Direct B hood, side entry, size 16B with single M40 cable entry. IP66/IP68/IP69K protection, aluminium die-cast housing with powder coating.
✓ Total Stock: 5 pcs

19396160548 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

19396160548 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Country of Origin
Height
Housing Color
Housing Finish
Housing Material
Industrial Grade
Ingress Protection
Length
Lock Location
Operating Temperature
Operating Temperature Range
SVHC Present
Specifications
Style
Thread Size
Width
View Similar Products (0)

19396160548 Description

Short technical summary and product information.

This Harting Han HP Direct B hood (part number 19 39 616 0548) is a heavy-duty connector hood designed for industrial applications requiring reliable environmental sealing. The hood features a side entry design with a single M40 cable entry and screw locking mechanism.



The housing is made from aluminium die-cast with a powder-coated finish in RAL 7037 (dust grey). The seal is NBR and the locking elements are stainless steel. It provides high ingress protection ratings of IP66, IP68, and IP69K, making it suitable for harsh environments including high-pressure washdown.



This hood is part of the Han HP Direct B series, size 16B. It meets fire protection standard EN 45545-2 for railway vehicles and complies with IEC 60664-1 and IEC 61984. The operating temperature range is -40 to +125 °C.

19396160548 Quick Information

Product Type: Heavy Duty Connector Hood
Series: HP Direct B
Canonical Name: Harting Han 16HP Direct/B-HSE-M40 Hood, Side Entry, Size 16 B, M40
Subcategory: Heavy Duty Connector Hood

19396160548 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: Compliant
Lead Free: Yes

19396160548 Features

  • Side entry with single M40 cable entry.
  • IP66/IP68/IP69K ingress protection rating.
  • Aluminium die-cast housing, powder coated.
  • Screw locking with stainless steel hardware.
  • Operating temperature range -40 to +125 °C.

19396160548 Applications

  • Used in heavy-duty industrial connector systems.
  • Suitable for railway rolling stock applications.
  • Ideal for harsh environments requiring high IP protection.
  • Applicable in machinery and control cabinets.

19396160548 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the ingress protection rating of this Harting hood?

IP66, IP68, and IP69K (IPX9K per ISO 20653).

What is the operating temperature range?

-40 to +125 °C.

What cable entry size does this hood accept?

One M40 cable entry.

What material is the housing made from?

Aluminium die-cast with powder-coated finish.

Does this product comply with RoHS and REACH?

Yes, RoHS compliant. REACH Annex XVII, Annex XIV, and SVHC substances are not contained.
