| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Entry | |
| China RoHS | |
| Connector Type | |
| ELV | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Type | |
| Material (Locking) | |
| Material (Seal) | |
| Net Weight | |
| Operating Temperature | |
| Packaging Size | |
| Prop 65 | |
| SVHC Present | |
| Storage Temperature | |
| Style | |
| Thread Size | |
| Tightening Torque | |
| Width |

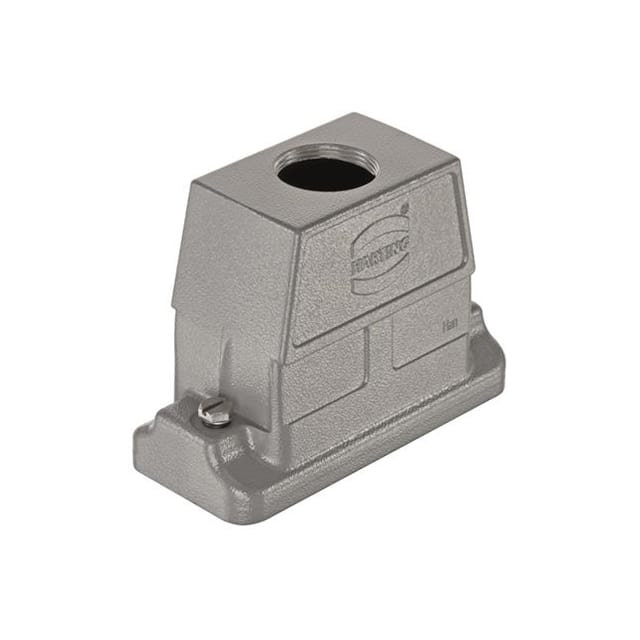

The Harting 19396160448 is a heavy duty connector hood from the Han HP Direct B series. It features a top entry design with a single M40 cable entry and screw locking mechanism with a tightening torque of 4 Nm. The housing is made of aluminum die-cast with a powder-coated finish in RAL 7037 dust gray. The seal is NBR and the locking elements are stainless steel.
This hood is rated for ingress protection IP66, IP68, and IP69K, making it suitable for harsh environments requiring dust tightness and water resistance. It operates over a temperature range of -40°C to 125°C. The part is compliant with RoHS, REACH, ELV, China RoHS, and California Proposition 65.
The hood is designed for use with size 16B connectors and is part of the Han HP Direct B series. It is supplied individually with a net weight of 328 g. Dimensions are 127.00 mm length, 56.80 mm width, and 94.00 mm height.
IP66, IP68, and IP69K (dust tight, water resistant, waterproof).
-40°C to 125°C.
1x M40 cable entry.
Screw locking with a tightening torque of 4 Nm.
Housing: aluminum die-cast with powder coating; seal: NBR; locking: stainless steel.
Yes, RoHS3 compliant.
Size 16B.
