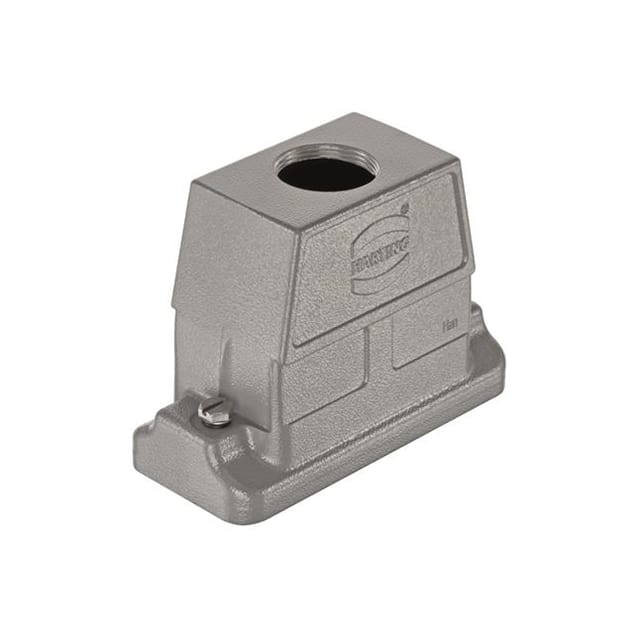

19396160447 Harting hood for heavy duty connectors. Top entry, size 16B, single M32 cable entry, screw locking, aluminium die-cast housing with RAL 7037 powder coating.
Mfr Part #:

19396160447

Available from 1 distributors
Mfr Name: Harting
Harting
Harting hood for heavy duty connectors. Top entry, size 16B, single M32 cable entry, screw locking, aluminium die-cast housing with RAL 7037 powder coating.
✓ Total Stock: 4 pcs

19396160447 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

19396160447 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Conflict Minerals
Connector Type
Country of Origin
Height
Housing Color
Housing Finish
Housing Material
Ingress Protection
Length
Lock Location
Operating Temperature
SVHC Present
Style
Thread Size
Width
View Similar Products (0)

19396160447 Description

Short technical summary and product information.

This Harting hood (Part Number 19396160447) is part of the Han HP Direct B series designed for heavy duty connector applications. It features a top entry configuration with a single M32 cable entry, screw locking mechanism with a tightening torque of 4 Nm, and a size 16B housing made from aluminium die-cast with a powder-coated finish in RAL 7037 (dust grey).



The hood provides a high degree of ingress protection rated IP66, IP68, and IP69K, making it suitable for demanding environments. The seal is made of NBR, and the locking components are stainless steel. Operating temperature range is -40 to +125 °C, complying with IEC 61984.



This component is RoHS compliant, ELV compliant, China RoHS e, and REACH compliant (Annex XVII, XIV, SVHC substances not contained). It also meets fire protection requirements for railway vehicles per EN 45545-2 (2020-08) requiring set R1 (HL 1-3) and R7 (HL 1-3). Contains Nickel and Naphthalene as per California Proposition 65.

19396160447 Quick Information

Product Type: Heavy Duty Connector Hood
Series: Han 16HP Direct/B-HTE-M32
Canonical Name: Han 16HP Direct/B-HTE-M32 Top Entry Hood
Subcategory: Top Entry Hood

19396160447 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Compliant
Lead Free: Yes

19396160447 Features

  • Top entry with single M32 cable opening.
  • Aluminium die-cast powder-coated housing.
  • Screw locking with 4 Nm tightening torque.
  • IP66, IP68, and IP69K protection rating.
  • Stainless steel locking components.

19396160447 Applications

  • Ideal for heavy duty connector hood applications.
  • Suitable for industrial machinery and automation.
  • Used in railway rolling stock and vehicles.
  • Applicable in harsh environment outdoor equipment.

19396160447 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the ingress protection rating of this hood?

IP66, IP68, and IP69K per IEC 60529 and ISO 20653.

What is the operating temperature range?

-40 to +125 °C.

What material is the housing made of?

Aluminium die-cast with powder-coated finish in RAL 7037 (dust grey).

What type of locking mechanism does this hood use?

Screw locking with a tightening torque of 4 Nm.

What cable entry size and number of entries does this hood have?

One M32 cable entry (top entry).
