| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CE Approval | |
| Cable Entry | |
| California Proposition 65 | |
| China RoHS | |
| Connector Type | |
| ELV | |
| Fire Protection Railway | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| IEC Standards | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Lock Material | |
| Locking Type | |
| Net Weight | |
| Number of Cable Entries | |
| Operating Temperature | |
| Packaging Size | |
| SVHC Present | |
| Seal Material | |
| Style | |
| Thread Size | |
| Tightening Torque | |
| Width |

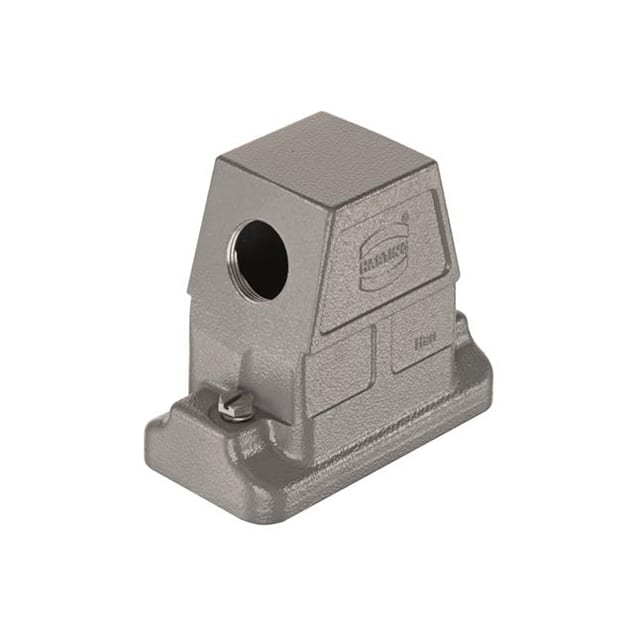

The HARTING 19396100547 is a hood from the Han HP Direct B series, designed for heavy-duty connector applications. It is a side entry hood with a size 10B configuration, accommodating a single M32 cable entry. The hood features screw locking with a tightening torque of 4 Nm, ensuring secure connections. The housing is made of aluminum die-cast with a powder-coated finish in RAL 7037 (dust grey). The seal is made of NBR, and the locking elements are stainless steel. This hood provides ingress protection up to IP66, IP68, and IP69/IPX9K according to ISO 20653, making it suitable for harsh environments. It operates within a temperature range of -40°C to +125°C. This component is RoHS and REACH compliant, and meets fire protection standards for railway vehicles EN 45545-2. The hood is sold individually.
The hood is rated IP66, IP68, and IP69/IPX9K according to IEC 60529 and ISO 20653.
The operating temperature range is -40°C to +125°C.
The housing is made of aluminum die-cast with a powder-coated finish in RAL 7037 (dust grey).
Yes, it is RoHS compliant and does not contain REACH Annex XVII, XIV, or SVHC substances.
The tightening torque is 4 Nm.
