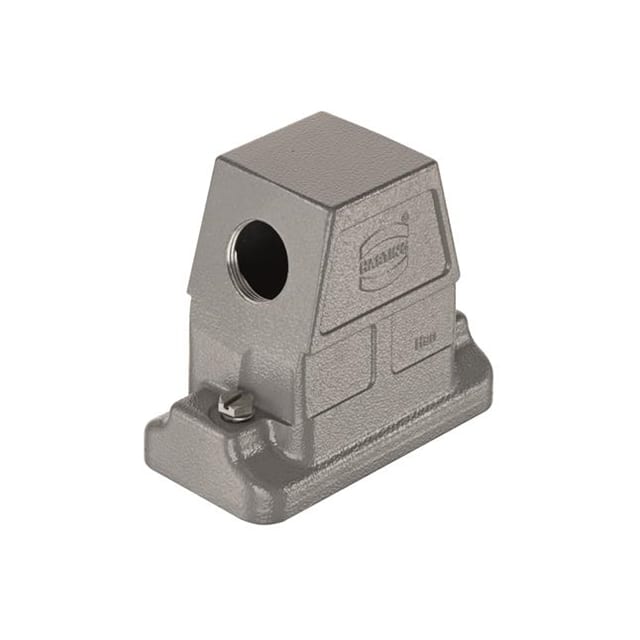

19396100545 Harting Han HP Direct B hood, side entry, size 10B, with M20 cable entry. Aluminum die-cast housing, powder coated gray, rated IP66/IP68/IP69K.
Mfr Part #:

19396100545

Available from 1 distributors
Mfr Name: Harting
Harting
Harting Han HP Direct B hood, side entry, size 10B, with M20 cable entry. Aluminum die-cast housing, powder coated gray, rated IP66/IP68/IP69K.
✓ Total Stock: 4 pcs

19396100545 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

19396100545 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Country of Origin
Height
Housing Color
Housing Finish
Housing Material
Industrial Grade
Ingress Protection
Length
Lock Location
Operating Temperature
SVHC Present
Style
Thread Size
Width
View Similar Products (0)

19396100545 Description

Short technical summary and product information.

The Harting 19396100545 is a Han HP Direct B series hood designed for heavy-duty connector applications. It features a side entry configuration with a single M20 cable entry and screw locking mechanism. The housing is made of aluminum die-cast with a powder-coated finish in RAL 7037 gray. The seal is NBR and the locking elements are stainless steel. This hood provides ingress protection ratings of IP66, IP68, and IP69K, making it suitable for demanding environments. It operates over a temperature range of -40°C to +125°C. The tightening torque for the screw locking is 4 Nm. The part is RoHS compliant and REACH Annex XVII, XIV, and SVHC substances are not contained.

19396100545 Quick Information

Product Type: Heavy Duty Connector Hood
Series: Han HP Direct B
Canonical Name: Han 10HP Direct/B-HSE-M20 Hood
Subcategory: Heavy Duty Connector Housings, Hoods, Bases

19396100545 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: Compliant

19396100545 Features

  • Side entry hood for size 10B connectors.
  • Single M20 cable entry with screw locking.
  • Aluminum die-cast housing, powder coated gray.
  • Rated IP66, IP68, and IP69K protection.
  • Operates from -40°C to +125°C.

19396100545 Applications

  • Used in heavy-duty industrial connector systems.
  • Suitable for harsh environment cable connections.
  • Ideal for applications requiring high ingress protection.
  • Common in factory automation and machinery.

19396100545 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the ingress protection rating of this hood?

IP66, IP68, and IP69K.

What is the operating temperature range?

-40°C to +125°C.

What material is the housing made of?

Aluminum, die cast with powder coated finish.

What is the cable entry size?

M20.

Is this hood RoHS compliant?

Yes, RoHS compliant.
