| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approvals | |
| Cable Entry | |
| Connector Type | |
| Country of Origin | |
| ETIM | |
| Failure Rate | |
| Fire Protection | |
| GTIN | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Material | |
| Locking Type | |
| Number of Cable Entries | |
| Operating Temperature | |
| Prop 65 | |
| RAL Color Code | |
| SVHC Present | |
| Seal Material | |
| Specifications | |
| Standard Package Quantity | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Thread Size | |
| Tightening Torque | |
| Weight | |
| Width | |
| eCl@ss |

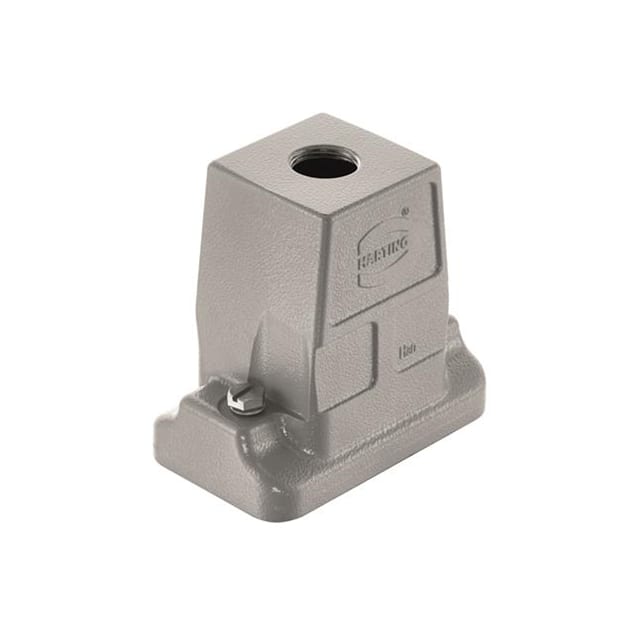

This is a heavy duty connector hood from the Han® HP Direct B series by Harting. It is a top entry hood with size 6B and M32 cable entry. The hood is designed for use with compatible Han® connectors. The housing is made of aluminum die-cast with a powder-coated surface in RAL 7037 (dust grey). The seal is made of NBR, and the locking elements are stainless steel. The screw locking requires a tightening torque of 4 Nm. Dimensions: 93.00 mm x 57.00 mm x 90.00 mm, weight 255.8 g. Environmental protection includes IP66, IP68, and IP69K ratings, making it suitable for harsh environments. Operating temperature range is -40°C to 125°C. It complies with fire protection standards EN 45545-2 for railway applications. The hood is RoHS compliant, REACH unaffected, and carries CE approval. It conforms to IEC 60664-1 and IEC 61984.
IP66, IP68, and IP69K.
-40°C to 125°C.
Aluminum die-cast with powder coating in RAL 7037 (dust grey).
Screw locking with a tightening torque of 4 Nm.
Size 6B.
Yes, RoHS3 compliant.
M32.
