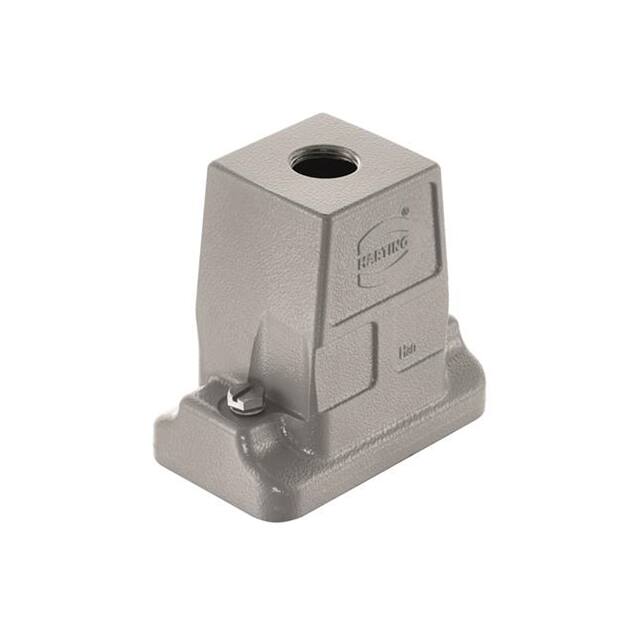

19396060445 Harting 19396060445 is a heavy duty connector hood with top entry, size 6B, and M20 cable entry. It features screw locking, aluminum die-cast housing, and IP66/IP68/IP69K protection.
Mfr Part #:

19396060445

Available from 1 distributors
Mfr Name: Harting
Harting
Harting 19396060445 is a heavy duty connector hood with top entry, size 6B, and M20 cable entry. It features screw locking, aluminum die-cast housing, and IP66/IP68/IP69K protection.
✓ Total Stock: 5 pcs

19396060445 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

19396060445 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Country of Origin
Halogen Free
Height
Housing Color
Housing Finish
Housing Material
Industrial Grade
Ingress Protection
Length
Lock Location
Operating Temperature
SVHC Present
Specifications
Style
Thread Size
Width
View Similar Products (0)

19396060445 Description

Short technical summary and product information.

The Harting 19396060445 is a heavy duty connector hood from the Han HP Direct B series. It is designed for top entry cable routing with a single M20 cable entry and screw locking mechanism. The housing is made of aluminum die-cast with a powder-coated finish in gray (RAL 7037). The seal material is NBR, and the locking elements are stainless steel.



This hood provides high ingress protection ratings of IP66, IP68, and IP69K, making it suitable for demanding environments requiring dust tightness and water resistance. It operates over a temperature range of -40°C to 125°C and complies with IEC 60664-1 and IEC 61984 standards.



The component is certified for fire protection on railway vehicles per EN 45545-2 (2020-08) with hazard levels R1 and R7 (HL 1-3). It is RoHS compliant, REACH unaffected, and contains California Proposition 65 listed substances (nickel and naphthalene). The hood weighs 259.8 g and has dimensions of 93.00 mm length, 57.00 mm width, and 90.00 mm height.

19396060445 Quick Information

Product Type: Heavy Duty Connector Hood
Series: Han HP Direct B
Canonical Name: Harting Han 6HP Direct/B-HTE-M20 Hood, Top Entry, Size 6B, M20
Subcategory: Hoods

19396060445 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: No

19396060445 Features

  • Top entry design for easy cable routing.
  • Screw locking mechanism for secure connection.
  • Aluminum die-cast housing with powder coating.
  • Rated IP66/IP68/IP69K for harsh environments.
  • Operating temperature range -40°C to 125°C.

19396060445 Applications

  • Used in heavy duty industrial connectors.
  • Suitable for railway vehicle fire protection.
  • Ideal for applications requiring high ingress protection.

19396060445 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the connector type?

Hood.

What is the size of this hood?

Size 6 B.

What is the cable entry thread size?

M20.

What is the ingress protection rating?

IP66, IP68, and IP69K.

What is the operating temperature range?

-40°C to 125°C.

What materials are used for the housing and seal?

Aluminum die-cast housing with powder coating, NBR seal, and stainless steel locking.

What compliance certifications does this hood have?

CE, RoHS, REACH unaffected, California Proposition 65 (nickel, naphthalene), and fire protection EN 45545-2 for railway vehicles.
