| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Entry | |
| California Proposition 65 | |
| China RoHS | |
| Color (Hood/Housing) | |
| Connector Type | |
| ELV | |
| Features | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Ingress Protection | |
| Length | |
| Limiting Temperature | |
| Lock Location | |
| Locking Type | |
| Material (Locking) | |
| Material (Seal) | |
| Net Weight | |
| Number of Cable Entries | |
| Operating Temperature | |
| Packaging Size | |
| Packaging Type | |
| REACH Annex XIV | |
| REACH Annex XVII | |
| REACH SVHC | |
| SVHC Present | |
| Style | |
| Thread Size | |
| Width |

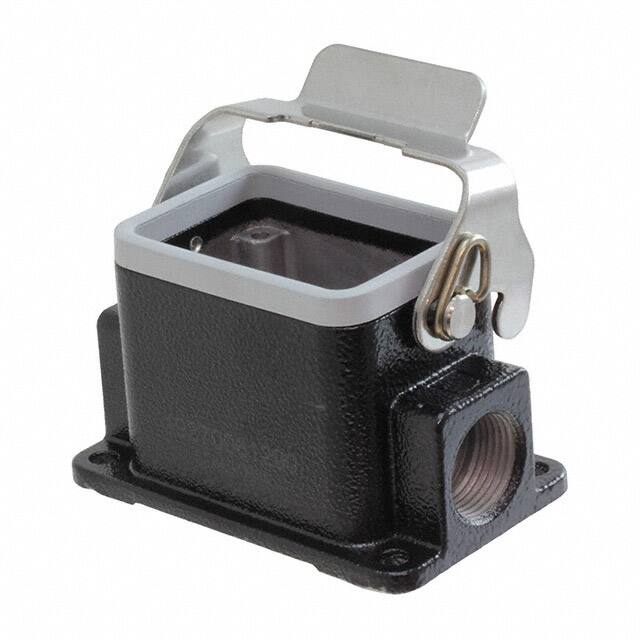

The Harting 19370061290 is a heavy duty connector base (box mount) from the Han M series. It is designed for side entry cable routing with two M20 threaded entries. The housing is made of aluminum die-cast with a powder-coated finish in RAL 9005 jet black. It features a single locking lever mechanism made of stainless steel for secure mating. The seal is made of FPM (fluorocarbon rubber) for environmental protection. This base provides IP65 ingress protection, making it suitable for rough environments. It has a limiting temperature range of -40°C to +125°C. The dimensions are 82.00mm length, 52.00mm width, and 51.50mm height, with a net weight of 196.8g. It is RoHS compliant and meets ELV and REACH requirements. This base is intended for use with compatible Han M inserts and hoods to form a complete heavy duty connector system. It is typically used in industrial automation, machinery, and transportation applications where reliable connections are needed in harsh conditions.
Size 6B.
IP65 - Dust Tight, Water Resistant.
-40°C to +125°C.
Aluminum, Die Cast with powder coating.
2x M20 cable entries.
Yes, RoHS compliant.
Single locking lever made of stainless steel.
