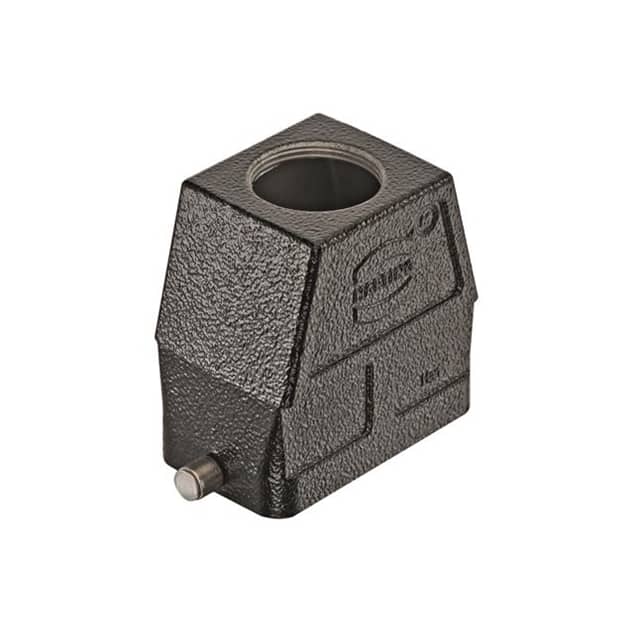

19370060446 This HARTING Han 6M-gg-M25 hood is a top entry, size 6B connector hood with a single M25 cable entry and single locking lever. It is rated IP65/66/67 and operates from -40°C to 125°C.
Mfr Part #:

19370060446

Available from 1 distributors
Mfr Name: Harting
Harting
This HARTING Han 6M-gg-M25 hood is a top entry, size 6B connector hood with a single M25 cable entry and single locking lever. It is rated IP65/66/67 and operates from -40°C to 125°C.
✓ Total Stock: 1 pcs

19370060446 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

19370060446 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Country of Origin
Height
Housing Color
Housing Finish
Housing Material
Ingress Protection
Length
Lock Location
Operating Temperature
SVHC Present
Style
Thread Size
Weight
Width
View Similar Products (0)

19370060446 Description

Short technical summary and product information.

The HARTING 19370060446 (Han 6M-gg-M25) is a heavy-duty connector hood designed for industrial applications requiring reliable connections in harsh environments. This top entry hood is part of the Han M series and features a size 6B housing made from die-cast aluminum with a powder-coated black finish (RAL 9005). It accepts a single M25 cable entry and is secured with a single locking lever mechanism.



The hood provides ingress protection ratings of IP65, IP66, and IP67, making it suitable for use in dusty, wet, or high-pressure washdown environments. It also meets UL Type 4, 4X, and 12 ratings per UL 50/50E. The operating temperature range spans -40°C to +125°C, and the product complies with EN 45545-2 for railway fire protection.



Designed for rough environments, this hood is ideal for use in industrial machinery, railway applications, and heavy equipment. It is RoHS, ELV, and REACH compliant, and weighs 120 g. The dimensions are 60.00 mm x 43.00 mm x 71.60 mm. Each unit is packaged individually.

19370060446 Quick Information

Product Type: Heavy Duty Connector Hood
Series: Han M
Canonical Name: HARTING Han 6M-gg-M25 Hood, Top Entry, Size 6B, M25
Subcategory: Heavy Duty Connector Hoods

19370060446 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1
REACH Status: Compliant

19370060446 Features

  • Top entry, size 6B connector hood.
  • Single M25 cable entry with locking lever.
  • IP65, IP66, and IP67 ingress protection.
  • Aluminum die-cast housing, powder-coated black.
  • Operating temperature -40°C to +125°C.

19370060446 Applications

  • Ideal for heavy-duty industrial machinery connections.
  • Suitable for railway rolling stock and infrastructure.
  • Used in harsh environments requiring IP66/67 sealing.
  • Compatible with Han M series connectors.

19370060446 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the ingress protection rating of this hood?

IP65, IP66, and IP67.

What is the cable entry size?

M25.

What is the locking type?

Single locking lever.

What is the housing material?

Aluminum, die-cast.

What is the operating temperature range?

-40°C to 125°C.

What is the size of the hood?

Size 6B.

Is this hood RoHS compliant?

Yes, RoHS compliant.
