| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| California Proposition 65 | |
| China RoHS | |
| Connector Type | |
| Country of Origin | |
| ELV | |
| ETIM | |
| Fire Protection on Railway Vehicles | |
| GTIN | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Ingress Protection | |
| Length | |
| Limiting Temperature | |
| Lock Location | |
| Locking Type | |
| Net Weight | |
| Number of Cable Entries | |
| Operating Temperature | |
| Packaging Size | |
| Style | |
| Thread Size | |
| Width | |
| eCl@ss |

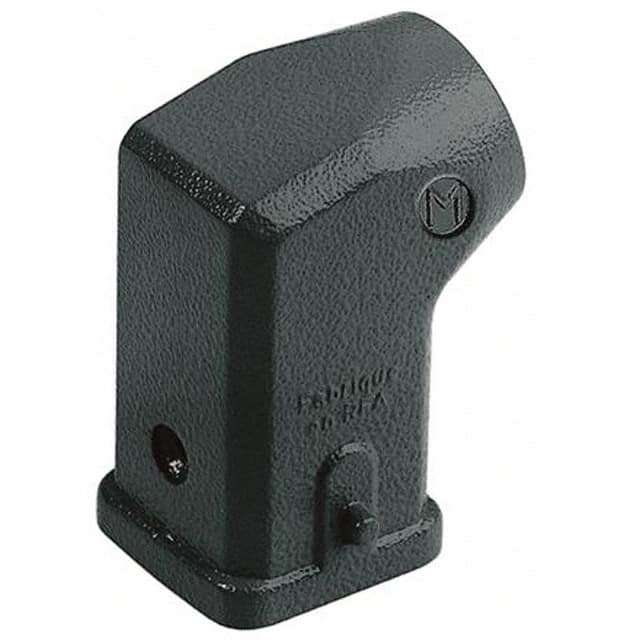

This Harting Han M hood (part number 19370031640) is a side entry, angled hood designed for heavy-duty industrial connector applications. It accommodates size 3A inserts and features a single M20 cable entry with a single locking lever for secure mating.
The housing is constructed from zinc die-cast material with an epoxy powder paint finish in RAL 9005 (jet black). It provides IP44 protection as standard, and can achieve IP65 or IP67 when used with the included seal screw. The operating temperature range is -40°C to +125°C.
This hood is part of the Han M series, suitable for rough environments. It is RoHS, ELV, and China RoHS compliant, and meets EN 45545-2 fire protection requirements for railway vehicles.
IP44 as standard; IP65 or IP67 when used with the included seal screw.
-40°C to +125°C.
Zinc die-cast with epoxy powder paint finish, color RAL 9005 (jet black).
Single locking lever.
M20.
Yes, RoHS compliant.
