| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Entry | |
| Category | |
| China RoHS | |
| Connector Type | |
| ELV | |
| Failure Rate | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Type | |
| Net Weight | |
| Operating Temperature | |
| Packaging Size | |
| Prop 65 | |
| SVHC Present | |
| Style | |
| Thread Size | |
| Width |

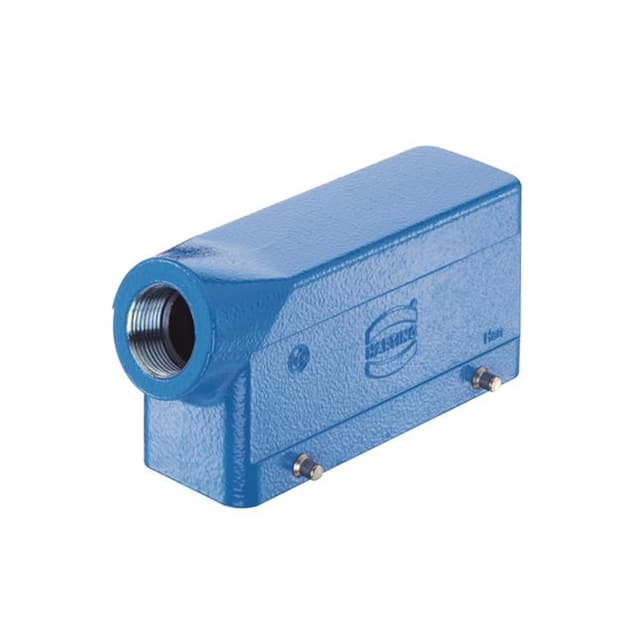

The Harting 19365241521 is a Han 24Ex UL-HSE-M25 hood designed for use in explosion-hazardous environments. It is part of the Han® Ex series and is intended for use with Han® Ex inserts only.
This hood features a size 24 B, side entry configuration with a single M25 cable entry. The locking mechanism is a double locking lever, ensuring secure mating. The housing is made of zinc die-cast with a powder-coated blue (RAL 5015) finish, providing durability and corrosion resistance.
The hood is rated IP65 with a cable gland, offering protection against dust ingress and water jets. It has an operating temperature range of -20°C to +40°C. The product is RoHS compliant, ELV compliant, and China RoHS compliant.
Size 24 B.
1x M25 cable entry.
Double locking lever.
IP65 with cable gland.
Zinc die-cast with powder-coated finish, color RAL 5015 (sky blue).
-20°C to +40°C.
120.00mm x 43.00mm x 62.50mm (L x W x H).
