| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
98 pcs
|
98 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connection Method | |
| Country of Origin | |
| Current | |
| Current Rating | |
| Features | |
| Height | |
| Hole Diameter | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| Tape & Reel | |
| Termination Style | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Termination |

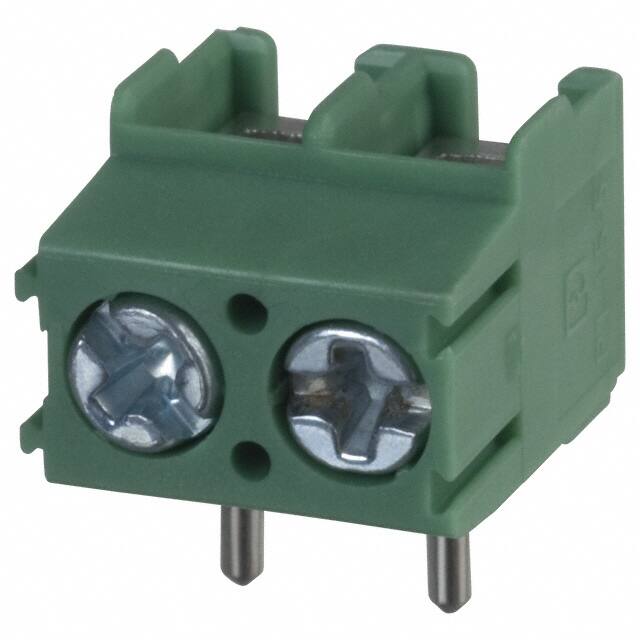

The Phoenix Contact 1935310 is a 2-position PCB terminal block from the PT 1,5/..-V series. It features a screw connection with a 90° conductor/PCB connection direction, making it suitable for vertical wire entry. The terminal block has a pitch of 5.00mm and is designed for through-hole mounting. It accepts wire gauges from 12-26 AWG and solid or flexible conductors with cross-sections up to 2.5 mm². The insulating material is polyamide (PA) with a flammability class of UL 94 V0. The electrical ratings include a nominal current of 17.5A and a nominal voltage of 400V, with a maximum load current of 17.5A. The rated surge voltage is 4 kV. The product includes side interlocking for multi-position assembly. The solder pins are tin-plated, and the screw thread is M2.6 with a tightening torque of 0.35-0.4 Nm. Stripping length is 5 mm. The terminal block is compliant with EN-VDE standards. It is manufactured in Germany and has a custom tariff number of 85369010.
2 positions.
5.00mm.
The nominal current is 17.5 A, with a maximum load current of 17.5 A.
The nominal voltage is 400 V, with rated voltages depending on pollution degree: 250 V (III/3), 400 V (III/2), 630 V (II/2).
Through-hole mounting.
12-26 AWG.
Screw thread M2.6, tightening torque 0.35-0.4 Nm.
