| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
90 pcs
|
90 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Current Rating | |
| Features | |
| Height | |
| Hole Diameter | |
| Lead Spacing | |
| Length | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Termination |

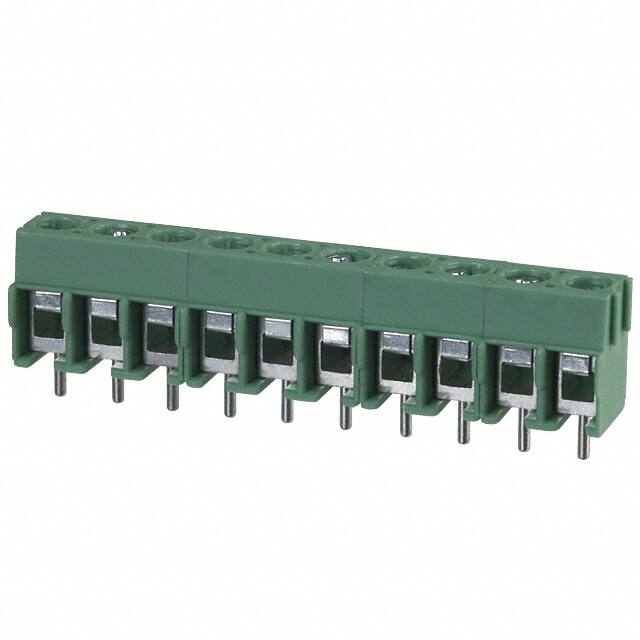

The Phoenix Contact 1935242 is a PCB terminal block from the PT 1,5/..-H series, designed for wire-to-board connections. It offers 10 positions at a 5 mm pitch, with a screw termination for reliable wire clamping. The terminal block is rated for a nominal current of 17.5 A and a voltage of 400 V, making it suitable for industrial control and power distribution applications.
The through-hole mounting and horizontal mating orientation simplify PCB layout and assembly. The insulating material is polyamide (PA) with a UL 94 V0 flammability rating, ensuring fire safety. The screw thread is M2.6 with a tightening torque of 0.35 Nm, accommodating wire sizes from 12-26 AWG (0.2-2.5 mm² solid or flexible).
This terminal block is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited). It is intended for soldering to the PCB, with pin dimensions of 1.0 mm and a hole diameter of 1.3 mm. The green color aids visual identification in dense wiring environments.
10 positions.
5 mm pitch.
17.5 A nominal current.
400 V nominal voltage (III/2, 250 V III/3).
Through-hole mounting with soldering.
12-26 AWG solid or flexible conductor.
UL 94 V0.
