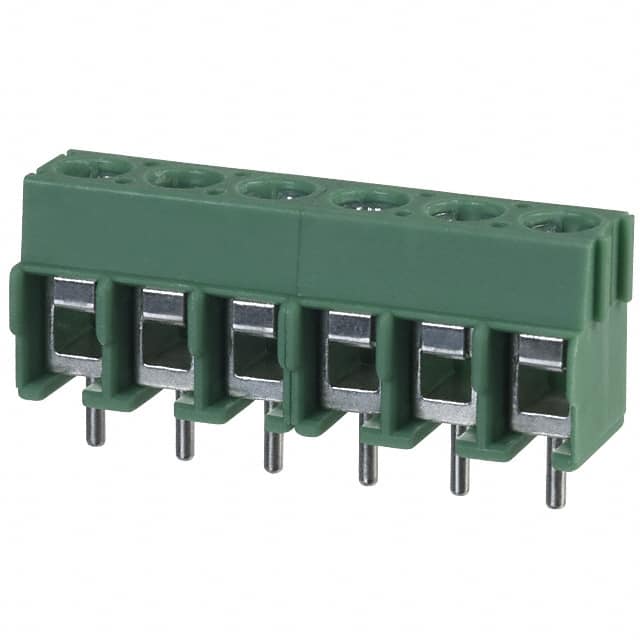

1935200 Phoenix Contact PT 1,5/ 6-5,0-H PCB terminal block with 6 positions, 5mm pitch, screw termination, rated 17.5A/400V. Through-hole mounting, green insulating material PA, flammability class UL 94 V0.
Mfr Part #:

1935200

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact PT 1,5/ 6-5,0-H PCB terminal block with 6 positions, 5mm pitch, screw termination, rated 17.5A/400V. Through-hole mounting, green insulating material PA, flammability class UL 94 V0.
✓ Total Stock: 8 pcs

1935200 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Emiteli ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1935200 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Features
Lead Spacing
Lead Style
Mating Orientation
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Voltage
Wire Gauge
Wire Termination
View Similar Products (0)

1935200 Description

Short technical summary and product information.

Phoenix Contact PT 1,5/ 6-5,0-H (MPN 1935200) is a 6-position single-level PCB terminal block with 5mm pitch. It features screw wire termination and horizontal (0°) mating orientation relative to the PCB. The block is rated for a maximum current of 17.5A and maximum voltage of 400V (category III/2). It accepts wire from 26 AWG to 14 AWG with a 5mm stripping length. The M2.6 screw requires a tightening torque between 0.35 Nm and 0.40 Nm. The terminal block is made from green polyamide (PA) insulating material with a flammability rating of UL 94 V0. Solder pins are tin-plated (Sn). The part is through-hole soldered to the PCB.

1935200 Quick Information

Product Type: PCB Terminal Block
Series: PT 1,5/..-H
Canonical Name: PCB Terminal Block PT 1,5/ 6-5,0-H
Subcategory: Wire-to-Board

1935200 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 (Unlimited)
REACH Status: Non-Compliant

1935200 Features

  • 6 positions with 5mm pitch for dense wiring.
  • Screw termination for secure 26-14 AWG connections.
  • Rated 17.5A at 400V for industrial power.
  • Through-hole mounting with tin-plated solder pins.
  • Green PA housing with UL 94 V0 flammability rating.

1935200 Applications

  • For power supply and control panel wiring.
  • Suitable for industrial automation and machinery.
  • Ideal for building and infrastructure electrical systems.
  • Used in PCB-level power distribution applications.

1935200 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1935200 have?

The terminal block has 6 positions per level.

What is the pitch of this terminal block?

The pitch is 5.00 mm.

What are the current and voltage ratings?

The maximum current is 17.5 A and the maximum voltage is 400 V.

What wire gauge range does it accept?

It accepts wire from 26 AWG to 14 AWG.

What is the mounting type?

Through Hole.

What is the insulating material and flammability class?

The insulating material is PA (polyamide) with a UL 94 V0 flammability rating.

What screw size and torque is required?

The screw thread is M2.6 with a tightening torque range of 0.35 Nm to 0.40 Nm.
