| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
230 pcs
|
230 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Conductor Cross Section (Solid) | |
| Conductor Cross Section Flexible | |
| Connection Method | |
| Current | |
| Current Rating | |
| Features | |
| Flammability Class | |
| Height | |
| Insulating Material | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mating Orientation | |
| Mounting Type | |
| Nominal Current | |
| Nominal Voltage | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| Screw Thread | |
| Stripping Length | |
| Termination Style | |
| Tightening Torque | |
| UL Flammability | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Termination |

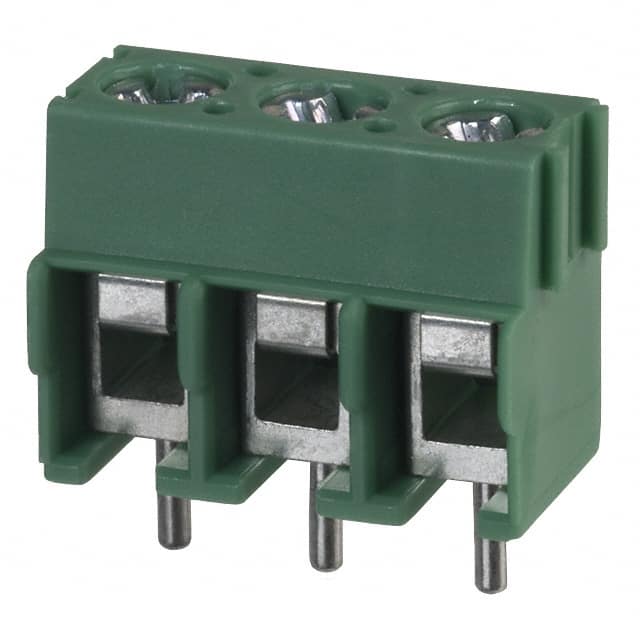

The Phoenix Contact 1935174 is a 3-position PCB terminal block from the PT 1,5/..-H series. It has a 5mm pitch and uses a screw connection method for reliable wire termination. The block is rated for 18A current and 300V voltage, with a nominal current of 17.5A and nominal voltage of 400V per the datasheet. It accepts wire gauges from 12 to 26 AWG and solid or flexible conductors from 0.2 to 2.5 mm².
This terminal block is designed for through hole soldering with a horizontal (side entry) mating orientation. The green insulating body is made of PA (polyamide) with a flammability rating of UL 94 V0. The screw thread is M2.6 with a tightening torque of 0.35-0.4 Nm, and the recommended stripping length is 5 mm. Side interlocking allows multiple blocks to be ganged together for additional positions.
Typical applications include power supply connections, industrial control panels, and building automation equipment where reliable screw termination and a compact 5mm pitch are required. The block is rated for surge voltages up to 4 kV and is designed for use in pollution degree 2/3 environments.
It has 3 positions.
The pitch is 5.00 mm.
The current rating is 18 A and the voltage rating is 300 V. The nominal current per the datasheet is 17.5 A and nominal voltage is 400 V.
Through hole mounting.
It accepts 12-26 AWG wire.
UL 94 V0.
