| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Conductor Cross Section (AWG) Max | |
| Conductor Cross Section (AWG) Min | |
| Conductor Cross Section Flexible Max | |
| Conductor Cross Section Flexible Min | |
| Conductor Cross Section Solid Max | |
| Conductor Cross Section Solid Min | |
| Conductor/PCB Connection Direction | |
| Connection Method | |
| Connection in Accordance with Standard | |
| Country of Origin | |
| Current | |
| Features | |
| Height | |
| Hole Diameter | |
| Inflammability Class UL 94 | |
| Insulating Material | |
| Insulating Material Group | |
| Internal Cylindrical Gage | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mating Orientation | |
| Maximum Load Current | |
| Minimum Order Quantity | |
| Mounting Type | |
| Nominal Cross Section | |
| Nominal Current | |
| Nominal Voltage | |
| Number of Levels | |
| Number of Positions | |
| Packing Unit | |
| Pin Dimensions | |
| Pin Spacing | |
| Pitch | |
| Positions Per Level | |
| Range of Articles | |
| Rated Surge Voltage (II/2) | |
| Rated Surge Voltage (III/2) | |
| Rated Surge Voltage (III/3) | |
| Rated Voltage (II/2) | |
| Rated Voltage (III/2) | |
| Rated Voltage (III/3) | |
| Screw Thread | |
| Solder Pin Surface | |
| Stripping Length | |
| Tightening Torque Max | |
| Tightening Torque Min | |
| Voltage | |
| Weight per Piece | |
| Wire Gauge | |
| Wire Termination |

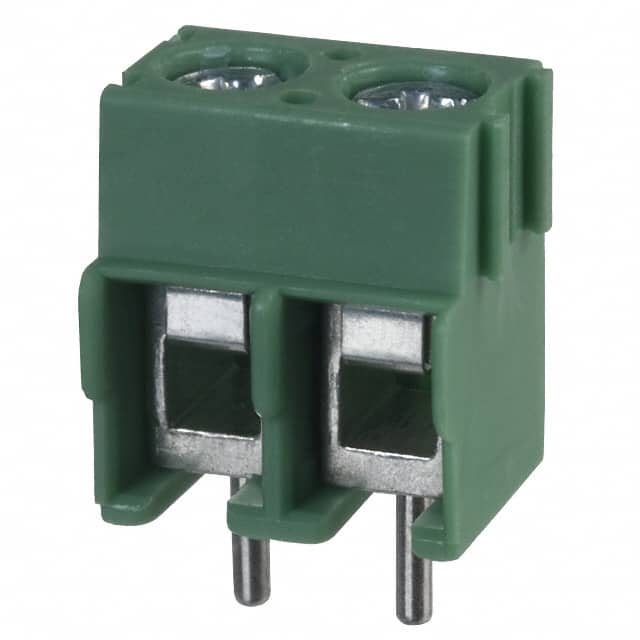

The Phoenix Contact 1935161 is a PCB terminal block from the PT 1,5/..-H series. It features 2 positions with a 5mm pitch and uses a screw connection method for reliable wire termination. The conductor/PCB connection direction is 0° (horizontal with board).
Electrical ratings include a nominal current of 17.5A and nominal voltage of 400V. The terminal block accepts wire sizes from 26 AWG to 14 AWG (0.2 mm² to 2.5 mm² solid or flexible). It is rated for surge voltages up to 4 kV and has an insulating material group I rating.
The housing is made of green PA (polyamide) with a V0 flammability rating per UL 94. The solder pins are tin-plated (Sn). Mechanical specifications include a length of 9mm, height of 11.3mm, and a hole diameter of 1.3mm. The screw thread is M2.6 with a tightening torque range of 0.35 Nm to 0.4 Nm.
The pitch is 5 mm.
It has 2 positions.
The nominal current is 17.5 A, with a maximum load current of 17.5 A.
The nominal voltage is 400 V. Rated voltages vary by category: 250 V (III/3), 400 V (III/2), 630 V (II/2).
Through hole (soldering).
It accepts 26 AWG to 14 AWG (0.2 mm² to 2.5 mm² solid or flexible).
UL 94 V0.
