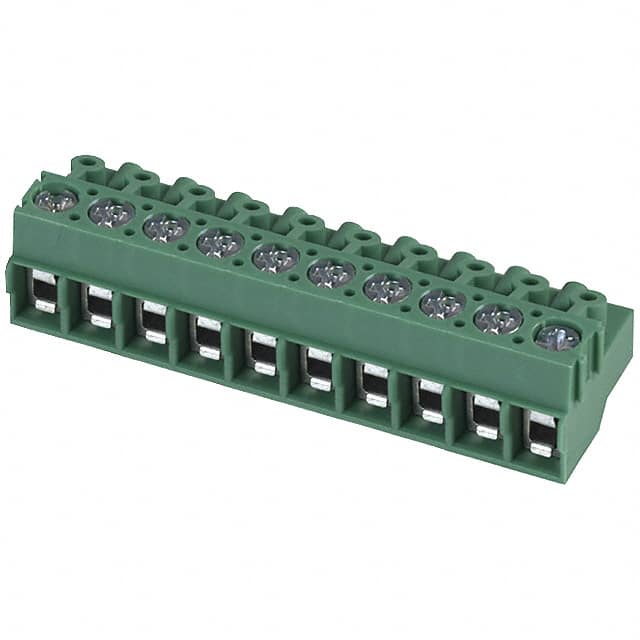

1934942 This 10-position plug component from the PT 1,5/..-PVH series features a 5 mm pitch and screw connection with rising cage clamp. It is rated at 12 A and 400 V for use in industrial control wiring.
Mfr Part #:

1934942

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
This 10-position plug component from the PT 1,5/..-PVH series features a 5 mm pitch and screw connection with rising cage clamp. It is rated at 12 A and 400 V for use in industrial control wiring.
✓ Total Stock: 30 pcs

1934942 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
30 pcs
On Request
30 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1934942 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Color
Contact Mating Finish
Country of Origin
Current
Halogen Free
Height
Industrial Grade
Lead Spacing
Lead Style
Length
Medical Grade
Military Grade
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
SVHC Present
Storage Temperature
Termination Style
Type
Voltage
Weight
Width
Wire Gauge or Range
View Similar Products (0)

1934942 Description

Short technical summary and product information.

The Phoenix Contact 1934942 is a 10-position plug component belonging to the PT 1,5/..-PVH series of PCB terminal blocks. It uses a screw connection with a rising cage clamp termination style, providing secure and reliable conductor clamping for solid or flexible wires ranging from 0.2 to 2.5 mm² (26-14 AWG).



This plug is rated for a nominal current of 12 A and a rated voltage of 400 V (III/2) with a rated surge voltage of 4 kV. It is designed for free hanging (in-line) mounting with a 90° wire entry angle. The green insulating housing is made from PA material with a flammability rating of UL94 V0.



Mechanical dimensions include a length of 14.9 mm, height of 11.3 mm, and width of 50 mm. It uses an M2.6 screw thread with a tightening torque range of 0.35-0.4 Nm and a stripping length of 5 mm.

1934942 Quick Information

Product Type: Plug Connector / Terminal Block Plug
Series: PT 1,5/..-PVH
Canonical Name: Phoenix Contact PT 1,5/10-PVH-5,0 Plug Component, 10 Position, 5 mm Pitch, Screw Connection
Subcategory: Rising Cage Clamp Plugs

1934942 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1934942 Features

  • 10-position, 5 mm pitch design.
  • Screw connection with rising cage clamp.
  • Rated 12 A, 400 V (III/2).
  • Free hanging (in-line) mounting.
  • UL94 V0 PA insulating material.

1934942 Applications

  • Ideal for factory automation control panels.
  • Used in industrial power distribution wiring.
  • Wiring for building management and lighting systems.
  • Connector for sensor and actuator cabling.

1934942 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does this terminal block plug have?

It has 10 positions in a single level.

What is the pitch of the 1934942?

The pitch is 5 mm.

What is the current rating of this Phoenix Contact plug?

The nominal current is 12 A, and the maximum load current is also 12 A.

What is the voltage rating for the 1934942 plug?

The rated voltage is 400 V for overvoltage category III/2, 250 V for III/3, and 630 V for II/2.

What type of mounting does this plug use?

It is designed for free hanging (in-line) mounting with a 90° wire entry.

What wire sizes are compatible with this terminal block?

It accepts solid or flexible conductors from 0.2 to 2.5 mm², corresponding to 26 to 14 AWG.
