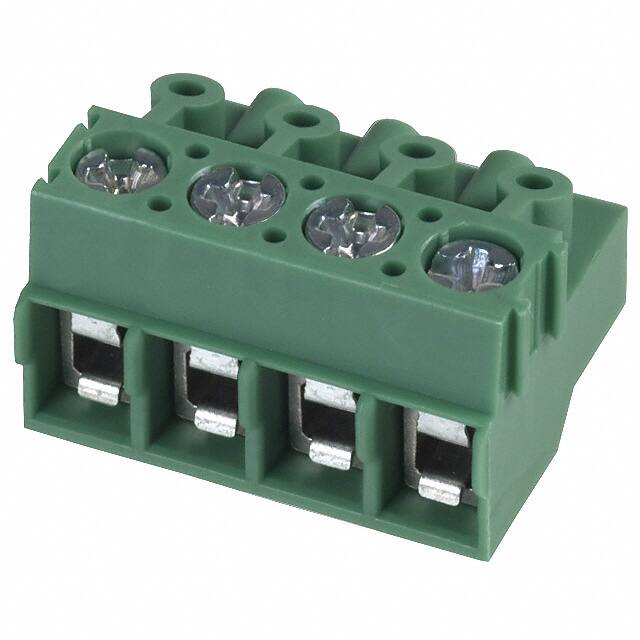

1934887 Phoenix Contact 1934887 is a 4-position terminal block plug with 5mm pitch, 90° wire entry, and screw connection. Rated for 12A and 400V.
Mfr Part #:

1934887

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1934887 is a 4-position terminal block plug with 5mm pitch, 90° wire entry, and screw connection. Rated for 12A and 400V.
✓ Total Stock: 30 pcs

1934887 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
30 pcs
On Request
30 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1934887 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Halogen Free
Height
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
Width
Wire Gauge or Range
View Similar Products (0)

1934887 Description

Short technical summary and product information.

The Phoenix Contact 1934887 (PT 1,5/ 4-PVH-5,0) is a 4-position plug component designed for use with unshrouded headers. It features a 5.00mm pitch and a free hanging (in-line) mounting style, making it suitable for field wiring applications. The termination method is a screw rising cage clamp, which accepts solid or flexible conductors from 0.2 mm² to 2.5 mm² with a stripping length of 5 mm.



Electrically, this plug is rated for a nominal current of 12 A and offers multiple rated voltage options depending on the overvoltage category: 400 V (III/2), 250 V (III/3), and 630 V (II/2). The rated surge voltage is 4 kV across all categories. The contact mating finish is tin, ensuring reliable conductivity.



Mechanically, the plug measures 14.9 mm in length, 20 mm in width, and 11.3 mm in height. It weighs 4.74 g per piece. The insulating material is polyamide (PA) with a flammability rating of UL 94 V0. The screw thread is M2.6 with a tightening torque range of 0.35 Nm to 0.4 Nm. The product color is green.

1934887 Quick Information

Product Type: Terminal Block Plug
Series: PVH
Canonical Name: Phoenix Contact PT 1,5/ 4-PVH-5,0 - 4 Position 5mm Pitch Plug for Unshrouded Header
Subcategory: Terminal Block Plugs

1934887 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

1934887 Features

  • 4 positions with 5mm pitch spacing.
  • Screw rising cage clamp termination.
  • Rated for 12A and 400V (III/2).
  • Accepts 0.2-2.5 mm² wire.
  • Green PA insulating material, UL94 V0.

1934887 Applications

  • Used in industrial control panels.
  • Suitable for power distribution.
  • Ideal for field wiring connections.
  • Common in building automation.

1934887 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1934887 have?

It has 4 positions.

What is the pitch of this terminal block plug?

The pitch is 5.00 mm.

What is the current rating of the 1934887?

The nominal current is 12 A, and the maximum load current is also 12 A.

What voltage ratings are available for this plug?

Rated voltage (III/2): 400 V, (III/3): 250 V, (II/2): 630 V. Rated surge voltage is 4 kV for all categories.

What is the mounting type of this plug?

It is free hanging (in-line) mounting.

What wire sizes does the 1934887 accept?

It accepts solid or flexible conductors from 0.2 mm² to 2.5 mm².

What is the flammability rating of the insulating material?

The insulating material is PA with UL 94 V0 flammability class.
