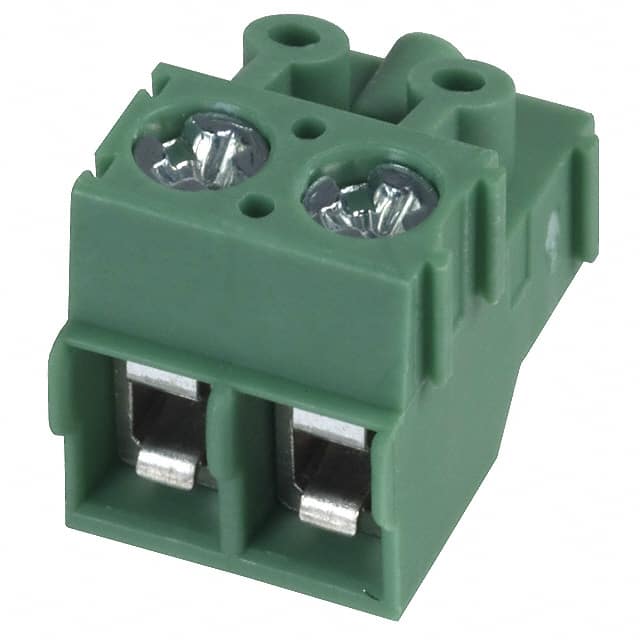

1934861 Phoenix Contact 1934861 is a 2-position terminal block plug with 5mm pitch, 90° wire entry, and screw connection. Rated for 12A and 400V (III/2).
Mfr Part #:

1934861

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1934861 is a 2-position terminal block plug with 5mm pitch, 90° wire entry, and screw connection. Rated for 12A and 400V (III/2).
✓ Total Stock: 98 pcs

1934861 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
98 pcs
On Request
98 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1934861 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Country of Origin
Current
Height
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
Width
Wire Gauge or Range
View Similar Products (0)

1934861 Description

Short technical summary and product information.

The Phoenix Contact 1934861 is a plug component from the PT 1,5/..-PVH series, designed for use with unshrouded headers. It features 2 positions with a 5mm pitch, allowing for a compact wiring solution. The plug is free hanging (in-line) and uses a screw - rising cage clamp termination, accommodating wire sizes from 0.2 to 2.5 mm² (26-14 AWG). The 90° wire entry facilitates right-angle cable routing. The green insulating material is PA (polyamide) with UL 94 V0 flammability rating. Electrical ratings include a nominal current of 12A and rated voltages up to 400V (III/2) or 630V (II/2). The contact mating finish is tin. The plug measures 14.9mm length, 11.3mm height, and 10mm width. It is RoHS compliant and REACH unaffected, with Germany as country of origin.

1934861 Quick Information

Product Type: Terminal Block Plug
Series: PT 1,5/..-PVH
Canonical Name: Phoenix Contact 1934861 Terminal Block Plug, 2 Position, 5mm Pitch
Subcategory: Plugs

1934861 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1934861 Features

  • 2 positions with 5mm pitch.
  • Screw rising cage clamp termination.
  • 90° wire entry for right-angle routing.
  • Rated 12A at 400V (III/2).
  • UL 94 V0 flammability rating.

1934861 Applications

  • Ideal for industrial control cabinets.
  • Used in sensor and actuator wiring.
  • Suitable for power distribution blocks.

1934861 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1934861 have?

It has 2 positions.

What is the pitch of the terminal block?

5.00mm (0.197 inches).

What is the rated current of the 1934861?

12A.

What is the rated voltage of the 1934861?

400V for overvoltage category III/2, 250V for III/3, 630V for II/2.

What is the mounting type?

Free hanging (in-line).

What wire sizes are compatible?

0.2 to 2.5 mm² solid or flexible, 26-14 AWG.

What is the tightening torque?

0.35 to 0.4 Nm.
