| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Type | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Plating | |
| Coplanarity | |
| Flammability Rating | |
| Height Above Board | |
| Housing Material | |
| Insertion, Removal Method | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Packaging Type | |
| Recommended Stencil Thickness | |
| Reel Width | |
| Shell Material | |
| reel_diameter |

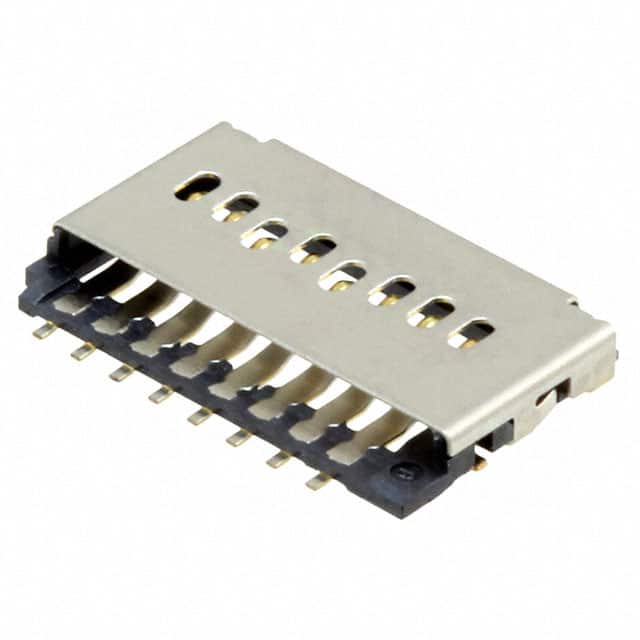

The TE Connectivity 1932739-1 is a microSD card socket designed for push/pull insertion and removal. It accommodates Secure Digital microSD™ cards and provides 9 positions (8 data + 1 card detect). The socket has a height above board of 1.45mm, making it suitable for low-profile applications.
The connector is surface mounted with a right angle orientation, and features a standard top mounting feature. It is constructed with a Liquid Crystal Polymer (LCP) housing rated UL94V-0 for flammability, and phosphor bronze contacts with gold-palladium plating. The shell is stainless steel with nickel under gold plating at the contact area.
This socket is designed for reliable coplanarity, specified at 0.08mm maximum. The recommended stencil thickness for soldering is 0.1mm minimum. The component is supplied in tape and reel packaging with a 330mm reel diameter and 24.4mm reel width.
Application areas include portable electronic devices, handheld instruments, and any system requiring a compact, removable microSD card interface.
9 positions (8 data + 1 card detect).
Surface mount, right angle.
1.45 mm.
Push in, pull out.
Housing: LCP (UL94V-0), contacts: phosphor bronze, shell: stainless steel.
Tape and reel with 330mm reel diameter and 24.4mm reel width.
