| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Hole Diameter | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Pitch | |
| Positions Per Level | |
| Tape & Reel | |
| Termination Style | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

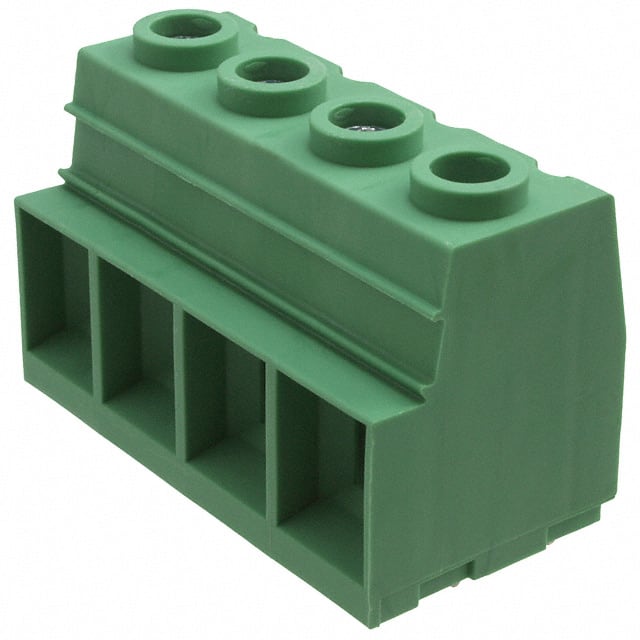

The Phoenix Contact MKDSP 25/ 4-15.00 (part number 1932601) is a 4-position PCB terminal block with a 15 mm pitch, designed for high-power wire-to-board applications. It features a screw connection with a rising cage clamp termination, accepting wire gauges from 2 to 20 AWG (0.5 to 35 mm² solid, 0.5 to 25 mm² stranded).
Electrical ratings include a nominal current of 125 A per IEC and 115 A per UL, with a rated voltage of 1000 V (IEC) and 600 V (UL). The rated surge voltage is 8 kV. The terminal block is housed in a green polyamide (PA) insulating material with a UL94 V0 flammability rating.
Mechanically, the block has a 15 mm pitch, M5 screw threads with a tightening torque range of 2.5 to 4.5 Nm, and an 18 mm stripping length. It is designed for through-hole soldering with a horizontal mating orientation. The overall length is 31 mm with a center-to-center dimension of 45 mm for the 4 positions.
The pitch is 15 mm.
It has 4 positions.
The nominal current is 125 A per IEC and 115 A per UL (Use Group B/C).
The rated voltage is 1000 V per IEC and 600 V per UL (Use Group B/C).
Through hole soldering.
It accepts 2 to 20 AWG wire.
The tightening torque range is 2.5 to 4.5 Nm.
