| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
77 pcs
|
77 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Current Rating | |
| Lead Spacing | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Termination |

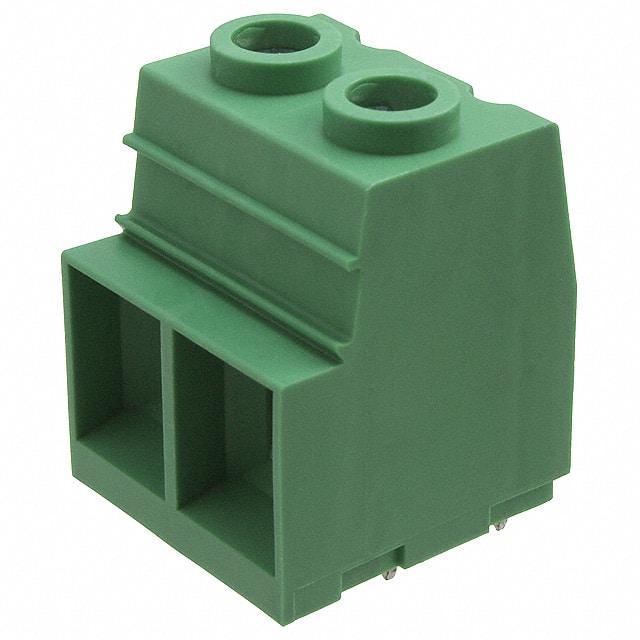

The Phoenix Contact 1932588 is a high-capacity PCB terminal block from the MKDSP 25 series. It offers 2 positions with a 15mm pitch, designed for through-hole mounting with horizontal wire entry. The terminal block is rated for a nominal current of 125A and a rated voltage of 1000V per EN-VDE, with a rated surge voltage of 8kV. It accepts solid conductors from 0.5 to 35 mm² and stranded conductors from 0.5 to 25 mm², corresponding to wire gauges 2-20 AWG. The screw connection uses a rising cage clamp mechanism with an M5 screw thread and a tightening torque range of 2.5-4.5 Nm. The insulating material is polyamide (PA) with a flammability rating of UL 94 V0. The product is green in color and has a stripping length of 18 mm. Typical applications include power distribution in industrial control systems, renewable energy equipment, and high-current PCB connections.
2 positions.
15.00mm.
125A nominal current per datasheet.
1000V rated voltage per EN-VDE.
Through Hole.
2-20 AWG.
M5 screw thread, torque 2.5-4.5 Nm.
