| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | 0750 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Features | |
| Hole Diameter | |
| Housing Material | |
| Lead Spacing | |
| Length | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

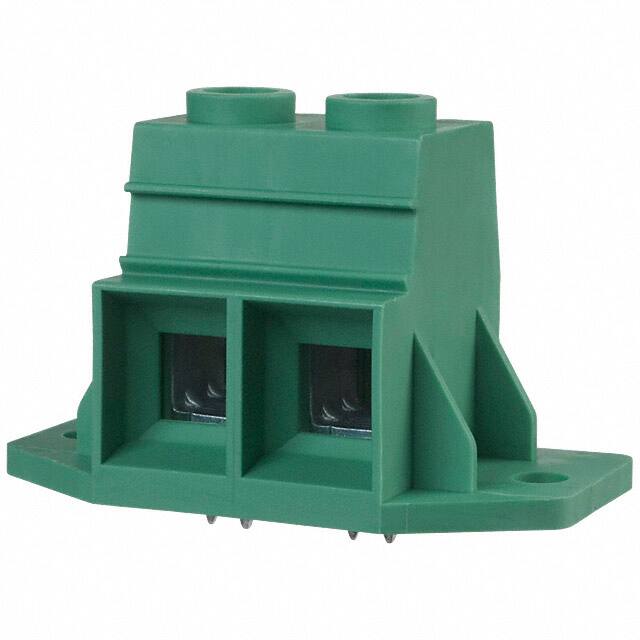

The Phoenix Contact MKDSP 25/ 2-15.00-F (part number 1932494) is a 2-position PCB terminal block designed for high-power wire-to-board connections. It offers a pitch of 15 mm and accepts wire sizes from 2 to 20 AWG (solid conductors 0.5-35 mm², stranded 0.5-25 mm²). Electrical ratings include 115 A (UL) and 125 A (IEC) current, and 600 V (UL) and 1000 V (IEC) voltage. The screw connection with rising cage clamp ensures reliable termination, and the through hole mounting allows secure soldering to the PCB. The green polyamide housing is rated UL94 V0 for flammability, and the integrated mounting flange provides additional mechanical support. This terminal block is suitable for industrial control panels, power distribution, and other applications requiring high current capacity and robust connections.
2 positions.
15.00 mm.
115 A (UL) and 125 A (IEC).
600 V (UL) and 1000 V (IEC).
Through hole mounting.
2-20 AWG.
Solid: 0.5-35 mm², stranded: 0.5-25 mm².
