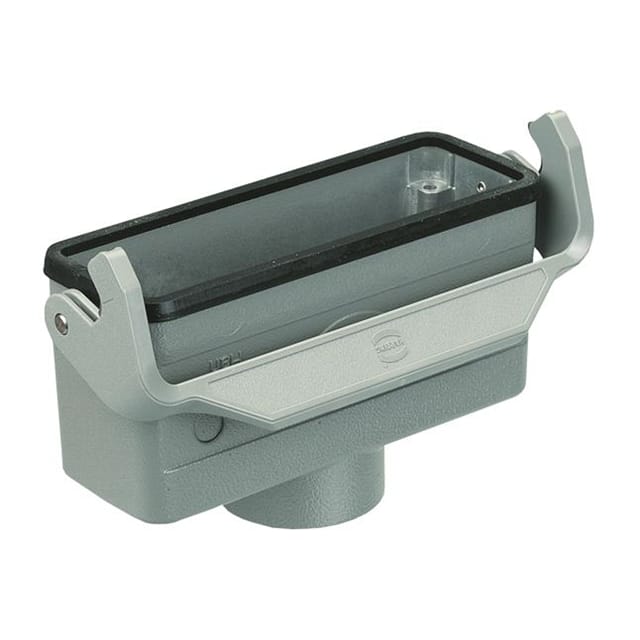

19302161752 Harting Han 16B-HMC-LB-M32 cable to cable hood, top entry, M32 cable entry, single locking lever, IP65 rated, -40 to 125°C.
Mfr Part #:

19302161752

Available from 1 distributors
Mfr Name: Harting
Harting
Harting Han 16B-HMC-LB-M32 cable to cable hood, top entry, M32 cable entry, single locking lever, IP65 rated, -40 to 125°C.
✓ Total Stock: 1 pcs

19302161752 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

19302161752 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Features
Height
Housing Color
Housing Finish
Housing Material
Ingress Protection
Length
Lock Location
Mating Cycles
Operating Temperature
Prop 65
SVHC Present
Style
Thread Size
Width
View Similar Products (0)

19302161752 Description

Short technical summary and product information.

The Harting Han 16B-HMC-LB-M32 (part number 19302161752) is a heavy duty cable to cable hood designed for high mating cycle applications. It features a top entry with a single M32 cable entry and a single locking lever mechanism. The housing is made of die-cast aluminum with a powder-coated finish in RAL 7037 (dust grey). The seal is NBR, and the locking levers are polycarbonate with stainless steel.



This hood is rated IP65 for dust tight and water resistant protection. It operates over a temperature range of -40°C to 125°C and is rated for at least 10,000 mating cycles. The locking levers have a UL 94 V-0 flammability rating. The hood is UL rated for types 4, 4X, and 12 enclosures.



It is designed for cable to cable connections in heavy duty applications requiring high mating cycles. The Han-Easy Lock feature simplifies locking. The hood meets railway fire protection standards EN 45545-2 with hazard levels R22 and R23 (HL 1-3). It is DNV GL approved for marine applications. Compliance includes RoHS, REACH, ELV, China RoHS, and California Proposition 65. The product is packaged individually.

19302161752 Quick Information

Product Type: Heavy Duty Connector Hood
Series: 16B
Canonical Name: Han 16B-HMC-LB-M32 Cable to Cable Hood, Top Entry, M32, Single Locking Lever
Subcategory: Cable to Cable Hood

19302161752 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

19302161752 Features

  • Top entry with single M32 cable entry.
  • Single locking lever for secure latching.
  • Die-cast aluminum housing, powder coated.
  • Rated IP65 for dust and water resistance.
  • Rated for at least 10,000 mating cycles.

19302161752 Applications

  • Ideal for cable to cable connections in heavy duty machinery.
  • Suitable for high mating cycle industrial applications.
  • Used in railway rolling stock and infrastructure.
  • Approved for marine environments (DNV GL).

19302161752 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the ingress protection rating of the Han 16B-HMC-LB-M32?

IP65 (dust tight, water resistant) per IEC 60529.

What is the operating temperature range?

-40°C to 125°C.

How many mating cycles is this hood rated for?

≥10,000 mating cycles with other HMC components.

What is the cable entry size and type?

Single M32 top entry.

What locking mechanism does this hood use?

Single locking lever with locking clip on hood.

What is the housing material and finish?

Aluminum die-cast with powder-coated finish, RAL 7037 (dust grey).

What environmental and safety compliances does this part meet?

RoHS3 compliant, REACH unaffected (contains SVHC), ELV compliant, China RoHS e, UL 50/50E types 4, 4X, 12, and EN 45545-2 for railway fire protection.
