| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approvals | |
| California Proposition 65 | |
| China RoHS | |
| Connector Type | |
| Country of Origin | |
| ELV | |
| Entry Style | |
| Features | |
| Fire Protection Railway | |
| Flammability Class (locking levers) | |
| GTIN | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Type | |
| Mating Cycles | |
| Operating Temperature | |
| Packaging Quantity | |
| SVHC Present | |
| Style | |
| Thread Size | |
| UL / CSA Ratings | |
| Weight | |
| Width |

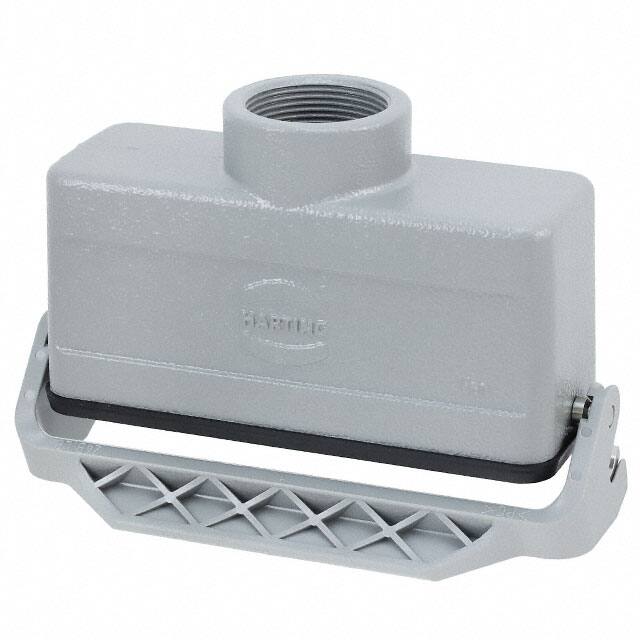

The Harting 19300241752 is a Han B Hood Coupler LC (Low Construction) 1 Lever M32, designed for cable-to-cable connections in heavy-duty industrial environments. This hood-coupling housing features a single locking lever with Han-Easy Lock for secure and easy mating. The housing is made of aluminum die-cast with a powder-coated finish in RAL 7037 gray, providing robust protection. It accepts a single M32 cable entry and is rated IP65 for dust tightness and water resistance. The operating temperature range is -40°C to 125°C, with a minimum of 500 mating cycles. It complies with UL 1977, CSA C22.2 No. 182.3, EN 45545-2 fire protection for railway applications, and is CE and DNV GL approved. The hood is RoHS compliant and contains REACH SVHC as declared. Suitable for use in industrial machinery, control cabinets, and transportation equipment.
IP65 - Dust Tight, Water Resistant.
-40°C to 125°C.
Single locking lever with Han-Easy Lock.
Aluminum, Die Cast with powder coated finish.
Size 24 B.
≥500 mating cycles.
UL 1977, CSA-C22.2 No. 182.3, CE, DNV GL, EN 45545-2 R22/R23 HL1-3, RoHS compliant.
