| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Entry Thread Size | |
| California Proposition 65 | |
| China RoHS | |
| Connector Type | |
| Country of Origin | |
| Degree of Protection (UL) | |
| ELV | |
| ETIM | |
| Fire Protection | |
| GTIN | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Limiting Temperature Note | |
| Lock Location | |
| Locking Type | |
| Mating Cycles | |
| Net Weight | |
| Number of Cable Entries | |
| Operating Temperature | |
| Operating Temperature Range | |
| Packaging Quantity | |
| SVHC Present | |
| Style | |
| Thread Size | |
| Version | |
| Width | |
| eCl@ss |

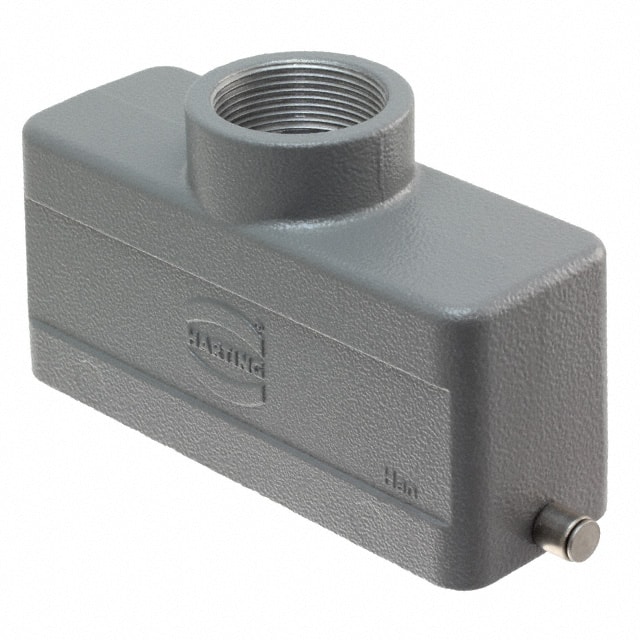

The HARTING 19300241442 is a Han 24B size top-entry hood designed for heavy duty industrial connector systems. It is part of the Han B series and features a single locking lever mechanism for secure closure. The housing is made of aluminium die-cast with a powder-coated finish in RAL 7037 dust grey.
This hood provides ingress protection ratings of IP65, IP66, and IP67, making it suitable for harsh environments. It is also UL type rated 4, 4X, 12. The operating temperature range is -40°C to +125°C, and it is rated for at least 500 mating cycles. The cable entry is a single M32 threaded opening.
Compliance includes RoHS, REACH, ELV, China RoHS, and California Proposition 65 (contains nickel). Additionally, it meets fire protection standards EN 45545-2 for railway applications (R1 and R7 hazard levels). The net weight is 167.6 g, and the country of origin is Germany.
Size 24B.
M32.
Single locking lever.
IP65, IP66, and IP67.
-40°C to +125°C.
Aluminium die-cast with powder-coated finish.
At least 500 cycles.
