| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Application | |
| Cable Entry | |
| California Proposition 65 | |
| China RoHS | |
| Connector Type | |
| ELV | |
| Failure Rate | |
| Features | |
| Flammability Class (locking levers) | |
| Han-Easy Lock | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Color | |
| Locking Material | |
| Locking Type | |
| Mating Cycles | |
| Mounting Type | |
| Number of Cable Entries | |
| Operating Temperature | |
| Railway Fire Protection | |
| SVHC Present | |
| Seal Material | |
| Standard Package Quantity | |
| Style | |
| Thread Size | |
| UL Enclosure Type | |
| Width |

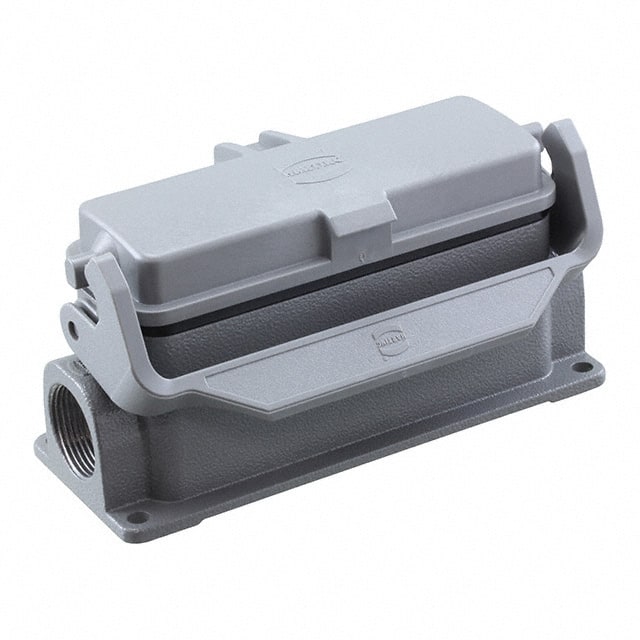

The Harting 19300241296 is a Han B series surface mount base (box mount) designed for heavy duty industrial connector applications. It features a side entry configuration with two M25 cable entries, accommodating cables up to the M25 thread size. The housing is constructed from aluminum die-cast with a powder-coated finish in RAL 7037 (dust grey), providing robust mechanical protection.
This base is rated IP65 per IEC 60529, offering dust tight and water resistant protection suitable for demanding environments. It operates over a temperature range of -40°C to 125°C and is rated for at least 500 mating cycles. The single locking lever mechanism, made from polycarbonate and stainless steel, includes Han-Easy Lock for convenient operation. UL enclosure type ratings 4, 4X, and 12 are achieved per UL 50/UL 50E.
The base includes a thermoplastic cover and is intended for standard hoods/housings in industrial connector systems. It is RoHS compliant, ELV compliant, and meets China RoHS exemption status e. Note that REACH SVHC substances are present (Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate).
IP65 per IEC 60529, dust tight and water resistant.
-40°C to 125°C.
2 cable entries, each M25 thread.
Aluminum die-cast with powder-coated finish, color RAL 7037.
Single locking lever made of polycarbonate and stainless steel, with Han-Easy Lock.
Yes, RoHS compliant per datasheet.
UL 50/UL 50E enclosure types 4, 4X, and 12.
