| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Entry Thread Size | |
| California Proposition 65 | |
| China RoHS | |
| Colour (hood/housing) | |
| Connector Type | |
| ELV | |
| Fire Protection on Railway Vehicles | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Limiting Temperature | |
| Lock Location | |
| Locking Type | |
| Material (Hood/Housing) | |
| Mating Cycles | |
| Number of Cable Entries | |
| Operating Temperature | |
| Packaging Size | |
| SVHC Present | |
| Style | |
| Surface (Hood/Housing) | |
| Thread Size | |
| Width |

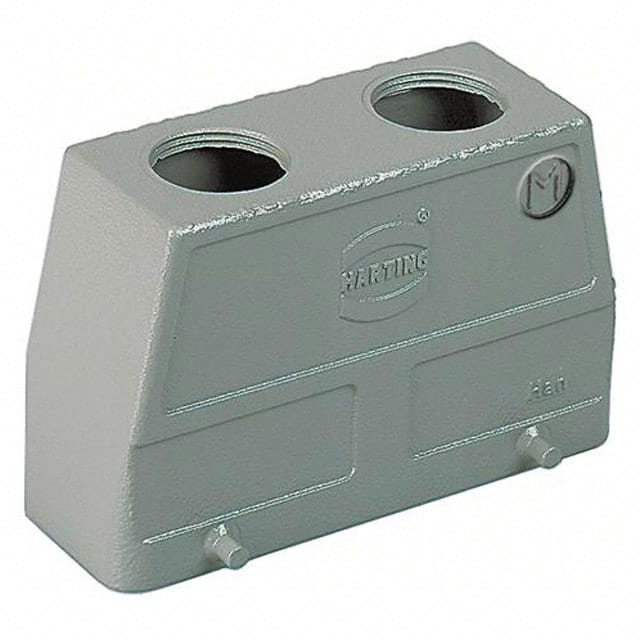

The Harting 19300240467 is a heavy-duty connector hood from the Han B series. It features a top entry dual design with two M32 cable entries, suitable for size 24B connectors. The hood is made of aluminum die-cast with a powder-coated finish in RAL 7037 dust grey. It uses a double locking lever mechanism for secure mating. The operating temperature range is -40°C to +125°C, and it is rated for at least 500 mating cycles. Ingress protection is IP65, IP66, and IP67, making it suitable for harsh environments. The hood measures 120.00mm in length, 43.00mm in width, and 76.00mm in height. It is RoHS, ELV, and REACH compliant, and meets fire protection standards EN 45545-2 for railway vehicles. This hood is designed for industrial connector applications requiring reliable environmental sealing.
IP65, IP66, and IP67.
-40°C to +125°C.
Two cable entries with M32 thread.
Double locking lever.
Aluminum die-cast with powder-coated finish.
Size 24 B.
At least 500 mating cycles.
