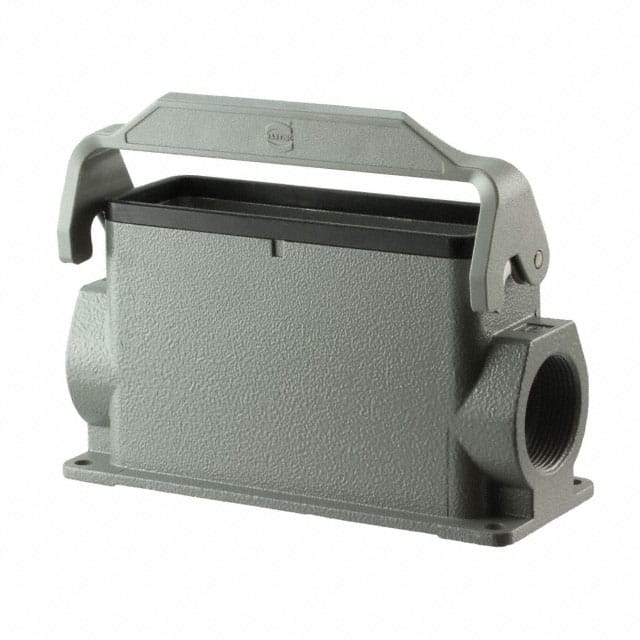

19300240292 Harting 19300240292 is a Han B heavy duty connector base with side entry, size 24B, and 2x M32 cable entries. It features a single locking lever and IP65 protection.
Mfr Part #:

19300240292

Available from 1 distributors
Mfr Name: Harting
Harting
Harting 19300240292 is a Han B heavy duty connector base with side entry, size 24B, and 2x M32 cable entries. It features a single locking lever and IP65 protection.
✓ Total Stock: 1 pcs

19300240292 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

19300240292 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Country of Origin
Failure Rate
Features
Height
Housing Color
Housing Finish
Housing Material
Industrial Grade
Ingress Protection
Length
Lock Location
Mating Cycles
Mounting Type
Operating Temperature
SVHC Present
Style
Thread Size
Weight
Width
View Similar Products (0)

19300240292 Description

Short technical summary and product information.

The Harting 19300240292 is a Han B series heavy duty connector base designed for surface mounting. It is size 24B with a side entry configuration and accommodates two M32 cable entries. The housing is made of aluminum die-cast with a powder-coated gray finish, providing durability and corrosion resistance. The seal is NBR, and the locking levers are constructed from polycarbonate and stainless steel, achieving a flammability class of V-0.



This base offers IP65 ingress protection, making it dust tight and water resistant. It operates over a wide temperature range of -40°C to 125°C and is rated for at least 500 mating cycles. The single locking lever incorporates Han-Easy Lock for secure and convenient mating. Approvals include UL 1977, CSA-C22.2 No. 182.3, CE, and DNV GL, and it meets fire protection standards EN 45545-2 and UL 50/50E Type 4, 4X, 12.



With dimensions of 144.00mm x 57.00mm x 80.80mm and a weight of 350g, this base is suitable for industrial connector applications requiring reliable performance in harsh environments. It is manufactured in Germany and comes in a standard package quantity of 1.

19300240292 Quick Information

Product Type: Heavy Duty Connector Base
Series: Han B
Canonical Name: Harting Han B Base Surface HC 1 Lever 2 x M32
Subcategory: Heavy Duty Connector Housings, Hoods, Bases

19300240292 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: Compliant

19300240292 Features

  • Han B series heavy duty connector base.
  • Size 24B with side entry configuration.
  • Two M32 cable entries for wiring.
  • Single locking lever with Han-Easy Lock.
  • IP65 dust tight and water resistant.

19300240292 Applications

  • Used in industrial machinery and control systems.
  • Suitable for power and signal distribution.
  • Ideal for harsh environment connections.
  • Common in automation and robotics applications.

19300240292 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the size of this Han B base?

Size 24B.

What is the ingress protection rating?

IP65 - Dust Tight, Water Resistant.

What is the operating temperature range?

-40°C to 125°C.

How many cable entries does it have?

2x M32 cable entries.

What locking mechanism does it use?

Single locking lever with Han-Easy Lock.

What material is the housing?

Aluminum, die cast with powder coating.

What approvals does it have?

UL 1977, CSA-C22.2 No. 182.3, CE, DNV GL.
