| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Entry | |
| China RoHS | |
| Connector Type | |
| ELV | |
| Fire Protection | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Limiting Temperature | |
| Lock Location | |
| Mating Cycles | |
| Net Weight | |
| Number of Cable Entries | |
| Operating Temperature | |
| Packaging Size | |
| Prop 65 | |
| SVHC Present | |
| Style | |
| Thread Size | |
| Width |

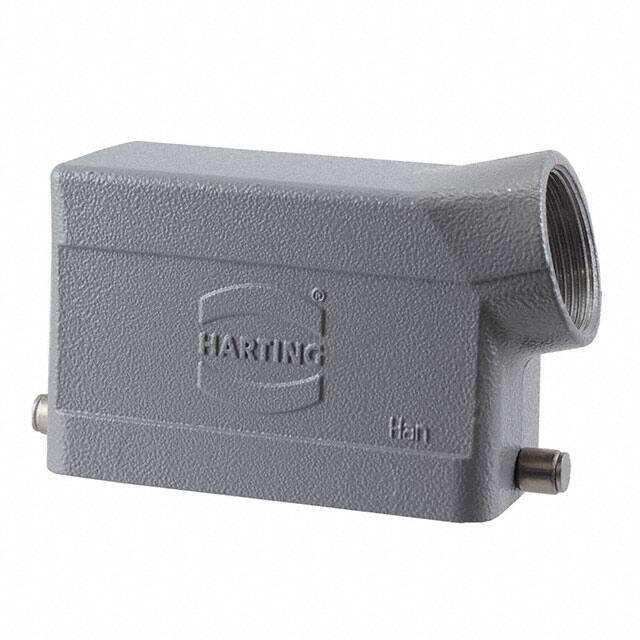

This Harting 19300161542 is a Han B hood designed for heavy-duty industrial connector systems. It features a side entry configuration with size 16B and a single M32 cable entry. The housing is constructed from aluminum die cast with a powder-coated finish in gray (RAL 7037).
The hood provides ingress protection rated IP65 (dust tight and water resistant), with additional ratings IP66, IP67, and UL 50/50E Types 4, 4X, 12. It supports at least 500 mating cycles and operates over a temperature range of -40°C to 125°C. The locking mechanism uses a single locking lever on the base bottom.
Compliance includes RoHS, REACH Annex XVII/XIV/SVHC not contained, ELV, China RoHS e, and California Proposition 65 (contains nickel). Fire protection meets EN 45545-2 (2020-08) for railway vehicles with hazard levels R1 and R7 (HL 1-3). The net weight is 2.9 g, and packaging is a single unit.
IP65 (dust tight, water resistant), also rated IP66, IP67, and UL 50/50E Types 4, 4X, 12.
-40°C to 125°C.
Aluminum die cast with powder coated finish, color RAL 7037 (dust grey).
At least 500 mating cycles.
Single M32 cable entry.
Size 16B.
Yes, RoHS compliant, REACH SVHC not contained, also ELV compliant, China RoHS e, and contains nickel per California Proposition 65.
