| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Color (Hood/Housing) | |
| Connector Type | |
| Degree of Protection (IEC 60529) | |
| ELV | |
| Failure Rate | |
| Fire Protection Railway | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Limiting Temperature | |
| Lock Location | |
| Locking Type | |
| Mating Cycles | |
| Net Weight | |
| Number of Cable Entries | |
| Operating Temperature | |
| Packaging Size | |
| Prop 65 | |
| SVHC Present | |
| Style | |
| Thread Size | |
| Type Rating (UL 50/50E) | |
| UL/CSA | |
| Upper Operating Temperature | |
| Width |

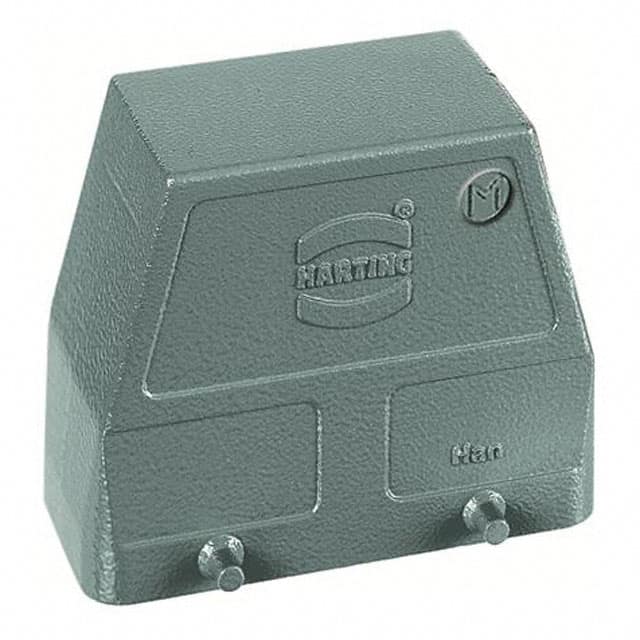

This Harting 19300160528 is a Han® B heavy duty connector hood designed for side entry cable routing. The hood measures 93.50mm x 43.00mm x 76.00mm and accepts a single M40 cable entry. It features a double locking lever mechanism and locking clips on the base bottom for secure mating.
The aluminum die-cast housing is powder coated in RAL 7037 (dust grey) and provides ingress protection ratings of IP65, IP66, and IP67 according to IEC 60529. It also carries UL 50/50E type ratings 4, 4X, and 12. The operating temperature range is -40°C to +125°C, with a minimum of 500 mating cycles.
This hood is suitable for industrial connector applications requiring robust environmental sealing. The side entry design allows for flexible cable routing in tight spaces. Compliance includes RoHS, ELV, REACH, and California Proposition 65. The part is also rated for fire protection on railway vehicles per EN 45545-2.
IP65, IP66, and IP67 per IEC 60529.
One M40 cable entry (size 16B).
Aluminum die-cast with a powder-coated finish.
-40°C to +125°C.
