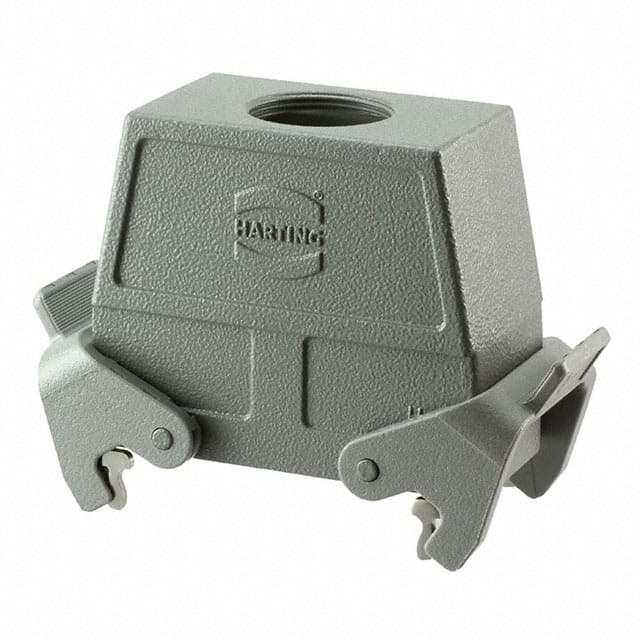

19300160437 Han® B top entry hood for heavy duty connectors. Size 16B with M32 cable entry, rated IP65/IP66/IP67.
Mfr Part #:

19300160437

Available from 1 distributors
Mfr Name: Harting
Harting
Han® B top entry hood for heavy duty connectors. Size 16B with M32 cable entry, rated IP65/IP66/IP67.
✓ Total Stock: 3 pcs
$ Price Range: $36.24 - $52.99

19300160437 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

19300160437 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Country of Origin
Failure Rate
Height
Housing Color
Housing Finish
Housing Material
Ingress Protection
Length
Lock Location
Mating Cycles
Operating Temperature
SVHC Present
Storage Temperature
Style
Tape & Reel
Thread Size
Width
View Similar Products (0)

19300160437 Description

Short technical summary and product information.

The Harting 19300160437 is a Han® B series top entry hood designed for heavy duty industrial connectors. It features a high construction, size 16B, and a single M32 cable entry. The housing is made of aluminum die-cast with a powder-coated finish in RAL 7037 (dust grey). Locking is achieved via double locking levers made of polycarbonate and stainless steel, with Han-Easy Lock technology. The hood provides ingress protection ratings of IP65, IP66, and IP67, making it suitable for demanding environments. It operates over a temperature range of -40°C to 125°C and is rated for a minimum of 500 mating cycles.



This hood complies with UL 50/50E type ratings 4, 4X, and 12, and carries approvals including CE, DNV GL, and EN 45545-2 fire protection standard for railway applications. The net weight is 248.6 g, and it is manufactured in Germany. It is designed for use with standard hoods/housings for industrial connectors, typically in conjunction with Han® B inserts.



Packaging quantity is 1 piece per datasheet.

19300160437 Quick Information

Product Type: Hood
Series: Han® B
Canonical Name: Han® B Hood Top Entry High Construction Size 16B M32
Subcategory: Top Entry Hood

19300160437 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH SVHC substances: Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate

19300160437 Estimated Pricing

Qty Low High
1+ $52.99 $52.99
10+ $47.34 $47.34
25+ $45.12 $45.12
50+ $40.59 $40.59
100+ $38.65 $38.65
250+ $36.24 $36.24

Estimated market price range - modelled values for guidance only, not live distributor offers.

19300160437 Features

  • Top entry hood for Han® B series.
  • Size 16B with M32 cable entry.
  • Double locking levers with Han-Easy Lock.
  • Rated IP65, IP66, and IP67.
  • Temperature range -40°C to 125°C.

19300160437 Applications

  • Standard industrial connector enclosures.
  • Railway applications meeting EN 45545-2.
  • Harsh environment enclosures requiring IP67.
  • UL 4/4X/12 rated indoor and outdoor use.

19300160437 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the ingress protection rating of this hood?

IP65, IP66, and IP67.

What size is this hood?

Size 16B.

What is the cable entry thread size?

M32.

What locking mechanism does it use?

Double locking lever with Han-Easy Lock.

What materials are used in the housing and locking levers?

Housing: aluminum die-cast, powder coated RAL 7037. Locking levers: polycarbonate and stainless steel, color RAL 7037.

What is the operating temperature range?

-40°C to 125°C.

How many mating cycles is it rated for?

A minimum of 500 cycles.
