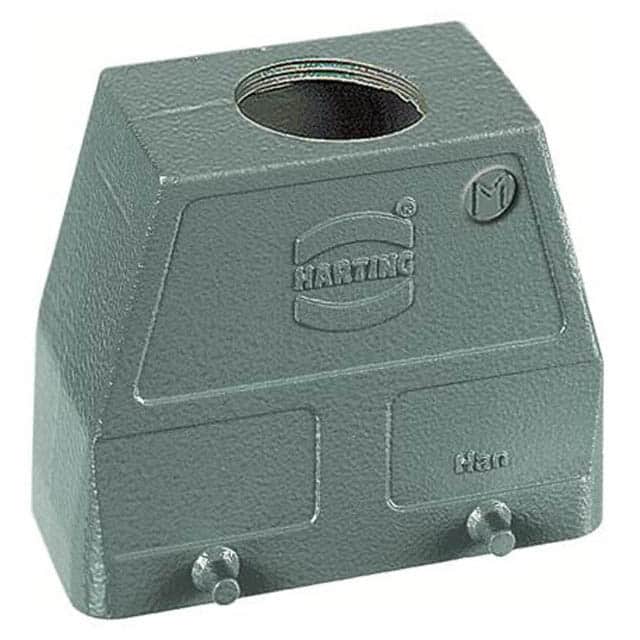

The Harting 19300160428 is a Han® B series hood designed for heavy-duty industrial connector applications. It is a top entry hood with size 16B, accommodating a single M40 cable entry. The housing is made of aluminium die-cast with a powder-coated finish in RAL 7037 (dust grey).
This hood provides ingress protection ratings of IP65, IP66, and IP67, making it suitable for demanding environments. It features a double locking lever mechanism for secure mating and has a locking clip on the base bottom. The operating temperature range is -40°C to +125°C, and it is rated for at least 500 mating cycles.
The hood complies with UL 50/50E type ratings 4, 4X, and 12, and meets fire protection standards EN 45545-2 for railway vehicles. It is RoHS, REACH, and ELV compliant, with China RoHS classification e. The product is manufactured in Germany and weighs 185 g.
This hood is intended for use with Han® B inserts and bases to form a complete connector system. It is suitable for industrial machinery, automation, and transportation applications where robust and reliable connections are required.
IP65, IP66, IP67
-40°C to +125°C
M40
Double locking lever
Aluminium die-cast with powder coating in RAL 7037 (dust grey)
≥500 cycles
Yes, RoHS compliant and REACH Annex XVII, XIV, SVHC substances not contained
