| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approvals | |
| Cable Entry Size | |
| California Proposition 65 | |
| China RoHS | |
| Connector Type | |
| Country of Origin | |
| ELV | |
| Failure Rate | |
| Fire Protection | |
| GTIN | |
| Han-Easy Lock | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Type | |
| Material Flammability Class | |
| Mating Cycles | |
| Mounting Type | |
| Number of Cable Entries | |
| Operating Temperature | |
| SVHC Present | |
| Standard Package Quantity | |
| Style | |
| Thread Size | |
| Weight | |
| Width |

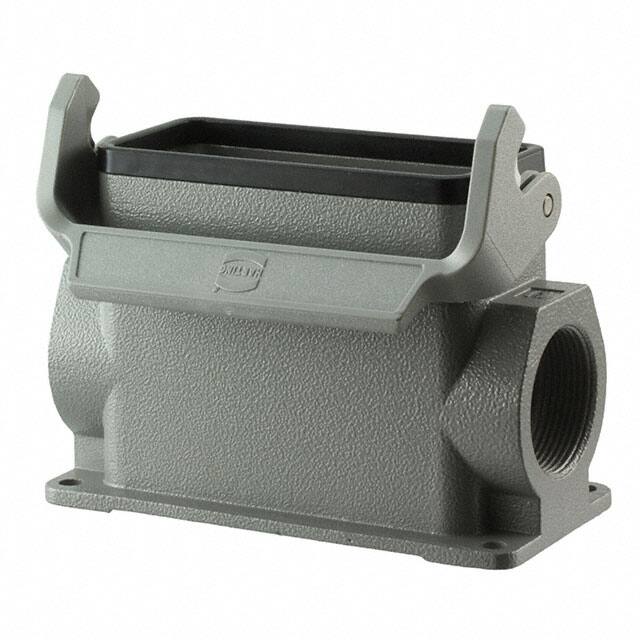

The Harting 19300160252 is a Han B surface mount base (box mount) designed for heavy duty industrial connector applications. It features a side entry configuration with a single M32 cable entry and a single locking lever with Han-Easy Lock technology. The housing is made of aluminum die-cast with a powder-coated finish in RAL 7037 (dust grey).
This base is rated for IP65 ingress protection, making it suitable for environments requiring dust tightness and water resistance. It supports up to 500 mating cycles and operates over a temperature range of -40°C to +125°C. The locking levers are made of polycarbonate with V-0 flammability rating.
The part is surface mounted and measures 117.00 mm x 57.00 mm x 80.80 mm. It is approved to UL 1977, CSA C22.2 No. 182.3, CE, and DNV GL standards. The product is RoHS compliant, ELV compliant, and meets China RoHS e requirements.
IP65 - Dust Tight, Water Resistant
-40°C to +125°C
≥500 cycles
Single locking lever with Han-Easy Lock
Aluminum, Die Cast with powder coated finish
