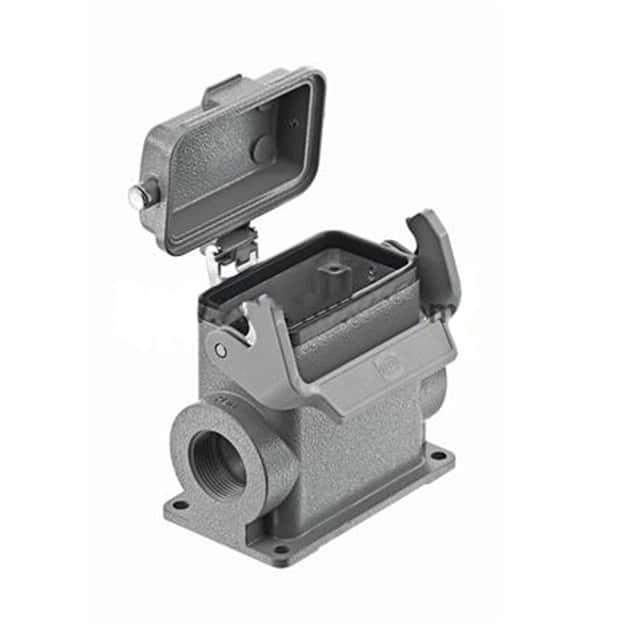

19300107296 Harting Han 10B surface mounted housing with side entry, 2x M25 cable entries, IP65 protection, and single locking lever.
Mfr Part #:

19300107296

Available from 1 distributors
Mfr Name: Harting
Harting
Harting Han 10B surface mounted housing with side entry, 2x M25 cable entries, IP65 protection, and single locking lever.
✓ Total Stock: 1 pcs

19300107296 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

19300107296 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Features
Height
Housing Color
Housing Finish
Housing Material
Industrial Grade
Ingress Protection
Length
Lock Location
Mating Cycles
Operating Temperature
SVHC Present
Style
Thread Size
Width
View Similar Products (0)

19300107296 Description

Short technical summary and product information.

The Harting 19300107296 is a Han 10B-asg2-LB-K-M25 surface mounted housing from the Han B series. It features a side entry design with two M25 cable entries, making it suitable for industrial connector applications requiring a compact and robust enclosure.



This housing is constructed from die-cast aluminum with a powder-coated finish in RAL 7037 dust gray. It includes a metal cover and a single locking lever made of polycarbonate and stainless steel. The seal material is NBR, providing IP65 dust-tight and water-resistant protection.



Rated for operating temperatures from -40°C to 125°C and capable of at least 500 mating cycles, this housing is designed for demanding environments. It supports Han-Easy Lock for convenient locking and is compliant with RoHS, REACH, and UL 50/50E standards.

19300107296 Quick Information

Product Type: Heavy Duty Connector Housing
Series: Han 10B
Canonical Name: Han 10B-asg2-LB-K-M25 (Ak in Al) Surface Mounted Housing
Subcategory: Hoods/Housings

19300107296 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

19300107296 Features

  • Side entry with two M25 cable entries.
  • IP65 dust-tight and water-resistant protection.
  • Die-cast aluminum housing with powder coating.
  • Single locking lever with Han-Easy Lock support.
  • Rated for -40°C to 125°C operating temperature.

19300107296 Applications

  • Used in industrial connector enclosures.
  • Suitable for harsh environment applications.
  • Ideal for side-entry cable routing.
  • Common in automation and control systems.

19300107296 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the ingress protection rating of this housing?

IP65 - Dust Tight, Water Resistant

What is the operating temperature range?

-40°C to 125°C

How many cable entries does it have and what size?

2 cable entries with M25 thread size

What material is the housing made of?

Aluminum, Die Cast with powder coated finish

What locking mechanism does it use?

Single locking lever with locking clip on base bottom
