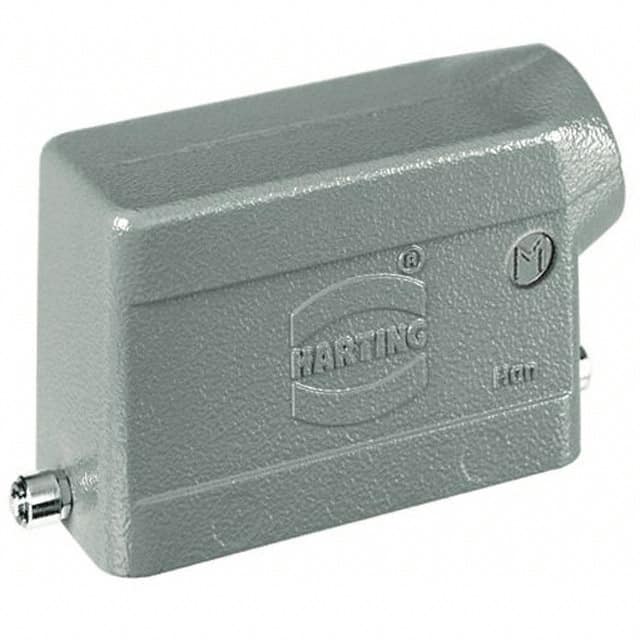

The Harting 19300101540 is a Han B series hood designed for side entry cable management in heavy-duty connector systems. It features a size 10B housing made from aluminum die-cast with a powder-coated finish in RAL 7037 dust gray. The hood accommodates one M20 cable entry and uses a single locking lever mechanism for secure closure.
This hood provides ingress protection ratings of IP65, IP66, and IP67 per IEC 60529, making it suitable for demanding industrial environments. It is rated for an operating temperature range of -40°C to +125°C and supports at least 500 mating cycles. The design complies with RoHS, ELV, and China RoHS requirements, and does not contain REACH Annex XVII, XIV, or SVHC substances.
IP65, IP66, and IP67 per IEC 60529.
-40°C to +125°C.
At least 500 mating cycles.
Aluminum die-cast with a powder-coated finish.
Yes, RoHS compliant.
