| Category | |
| Manufacturer Name | |
| CSA Rating | |
| Cable Entry | |
| California Proposition 65 | |
| China RoHS | |
| Connector Type | |
| Country of Origin | |
| ELV | |
| ETIM | |
| Fire Protection | |
| GTIN | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Type | |
| Mating Cycles | |
| Net Weight | |
| Operating Temperature | |
| SVHC Present | |
| Standard Package Quantity | |
| Style | |
| Thread Size | |
| UL Rating | |
| Weight | |
| Width | |
| eCl@ss |

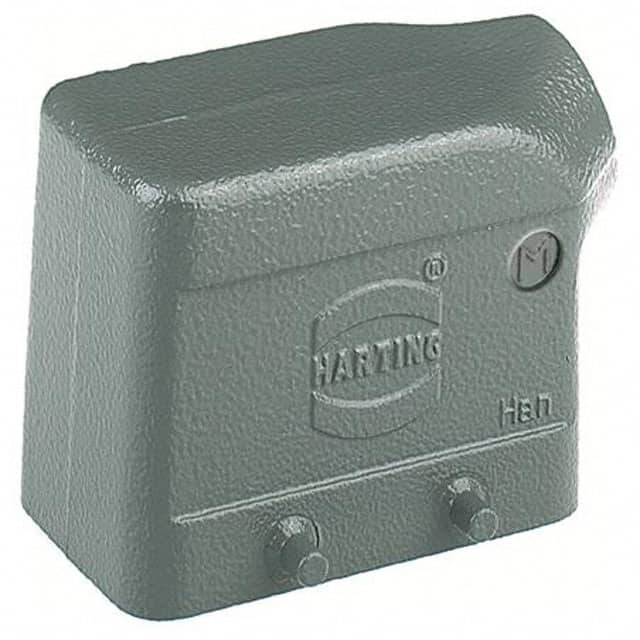

This Harting Han B hood (part number 19 30 010 1521) is a side entry hood designed for heavy duty industrial connector applications. It is size 10B and accepts a single M25 cable entry. The hood features a double locking lever mechanism for secure mating.
The housing is made of aluminum die-cast with a powder-coated finish in RAL 7037 (dust grey). It provides ingress protection ratings of IP65, IP66, and IP67 per IEC 60529, making it suitable for demanding environments. The operating temperature range is -40°C to +125°C, and it is rated for at least 500 mating cycles.
This hood is UL 1977 and CSA C22.2 No. 182.3 approved. It also meets fire protection requirements for railway vehicles per EN 45545-2 (R1, R7 HL 1-3). The product is RoHS, REACH, ELV, and China RoHS compliant.
IP65, IP66, and IP67 per IEC 60529.
-40°C to +125°C.
At least 500 cycles.
One M25 cable entry.
Double locking lever.
Aluminum die-cast with powder-coated finish, color RAL 7037.
Yes, UL 1977 and CSA C22.2 No. 182.3 approved.
