| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| California Proposition 65 | |
| China RoHS | |
| Connector Type | |
| ELV | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Ingress Protection | |
| Length | |
| Limiting Temperature | |
| Lock Location | |
| Locking Type | |
| Mating Cycles | |
| Number of Cable Entries | |
| Operating Temperature | |
| Packaging Size | |
| Style | |
| Surface | |
| Thread Size | |
| Weight | |
| Width |

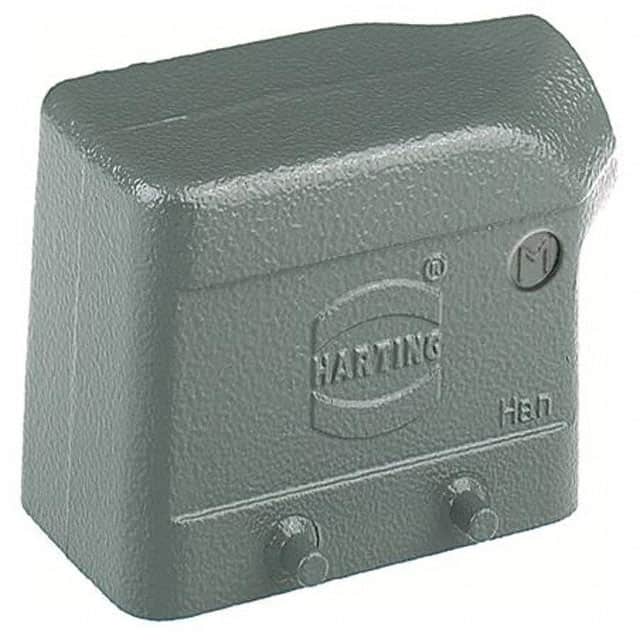

The Harting 19300101520 is a Han B series heavy duty connector hood designed for side entry cable management. It accommodates size 10B inserts and features a single M20 cable entry. The hood is constructed from aluminum die-cast with a powder-coated finish in RAL 7037 dust gray.
This hood uses a double locking lever mechanism with locking clips on the base bottom for secure mating. It is rated for IP65, IP66, and IP67 protection against dust and water ingress, making it suitable for industrial environments. The operating temperature range is -40°C to +125°C.
The hood supports at least 500 mating cycles and complies with RoHS, REACH, ELV, China RoHS, and California Proposition 65. It also meets fire protection requirements for railway vehicles per EN 45545-2 with hazard levels R1 and R7.
IP65, IP66, and IP67 per IEC 60529.
-40°C to +125°C.
One cable entry with M20 thread.
Double locking lever with locking clips on the base bottom.
Aluminum die-cast with powder-coated finish.
At least 500 mating cycles.
RoHS, REACH, ELV, China RoHS, California Proposition 65, and EN 45545-2 for railway fire protection.
